Intro

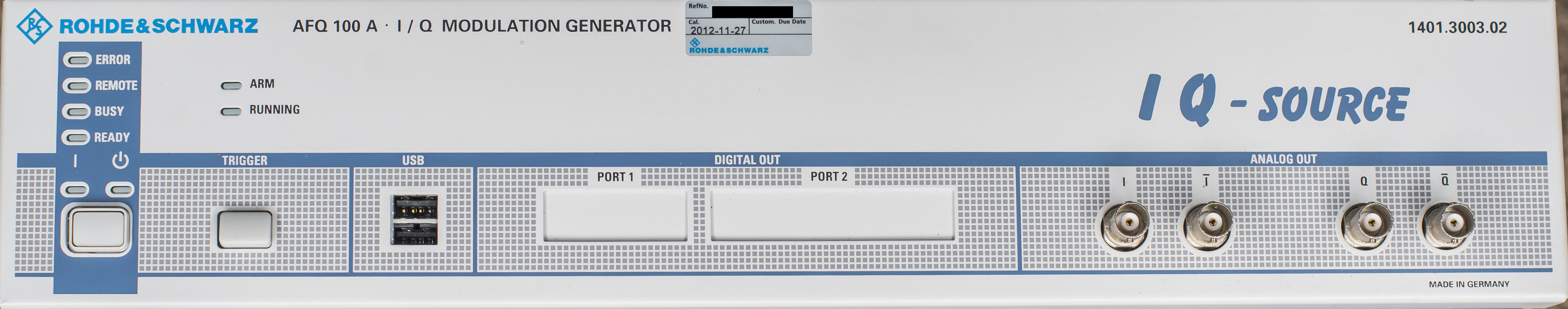

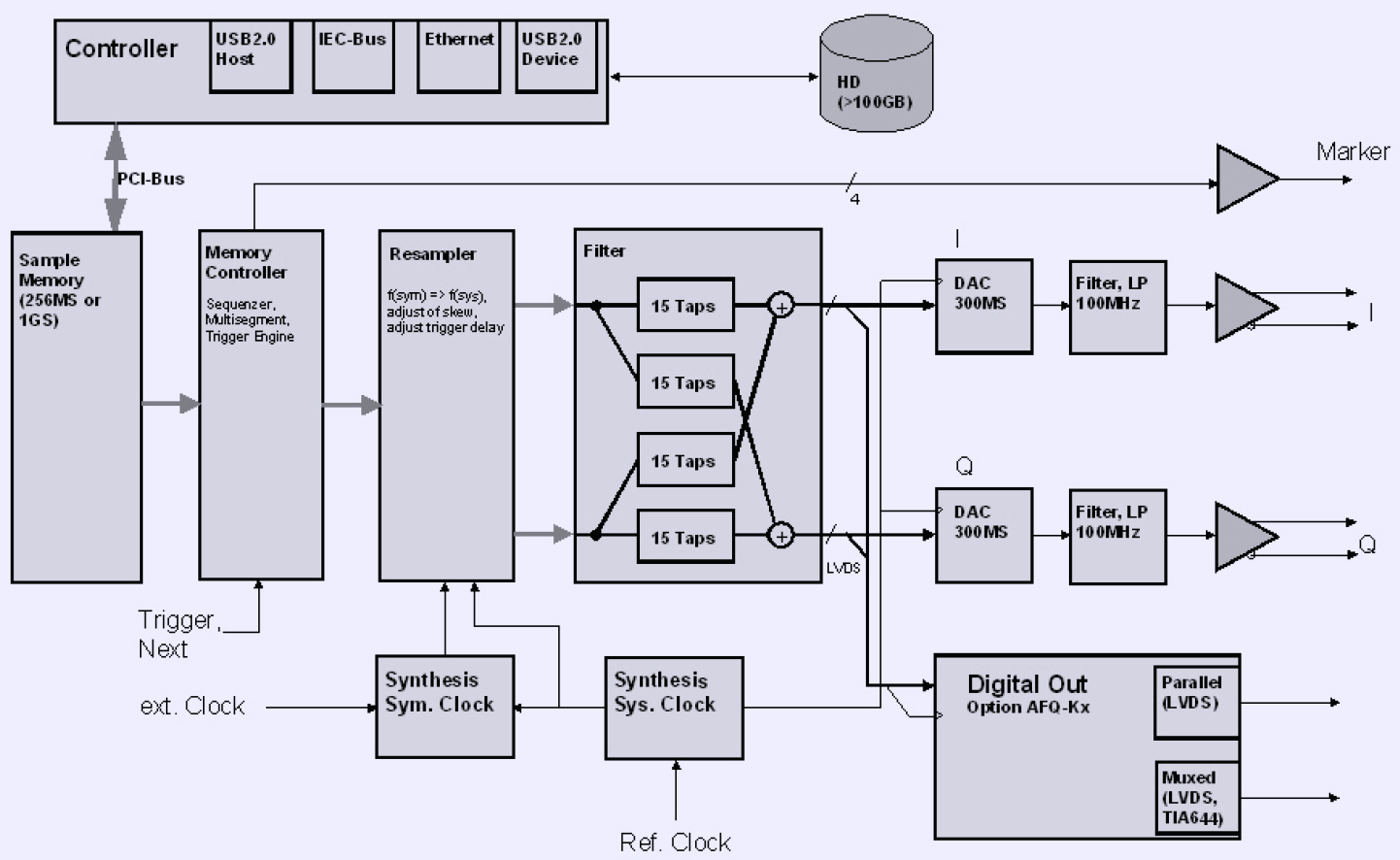

Some photographs and materials related to AFQ100A generator.
Manual
1MA206_3e_SDR_Measurements.pdf
ArbToolbox_Windows_4.3.7997.6494.msi
ArbToolbox_ReleaseNotes_4.3.pdf
ArbToolbox_OpenSourceAcknowledgment_4.3.pdf
AFQA_Release_Notes_3_50_201_17.pdf
RS_Apply_Patches_against_CVE-2019-0708_V1.3.pdf
SMx_RF_and_BB_Correction_Toolkit-V1.5.2.zip
K6_Pulse_Sequencer_V41_win32_b.exe
rsafq_lv6_Trigger_Example_1_1.zip
rsafq_lv6_Waveform_Example_1_1_1.zip
rsafq_lv6_Equalization_Example_1_1.zip
rsafq_csharp_Waveform_Example_1_1~1.zip
1MA074_RSCommander_x64_2.4.2.exe
TELEC_DFS_Signal_Generation_SoftwareManual_en_jp_01.pdf
DFS_SignalGeneration_SoftwareManual_en_07.pdf
PulseSequencer_SoftwareManual_en_12.pdf
RS_SigGen_MCCW_OperatingManual.pdf
AFQ100A_InstrumentSecurity_en_05.pdf
AFQ100A_QuickStartGuide_en_06~1.pdf
AFQ100A_OperatingManual_en_05~1.pdf
Firmware / disk image
AFQ100A hard drive image copy, 8.9GB ZIP

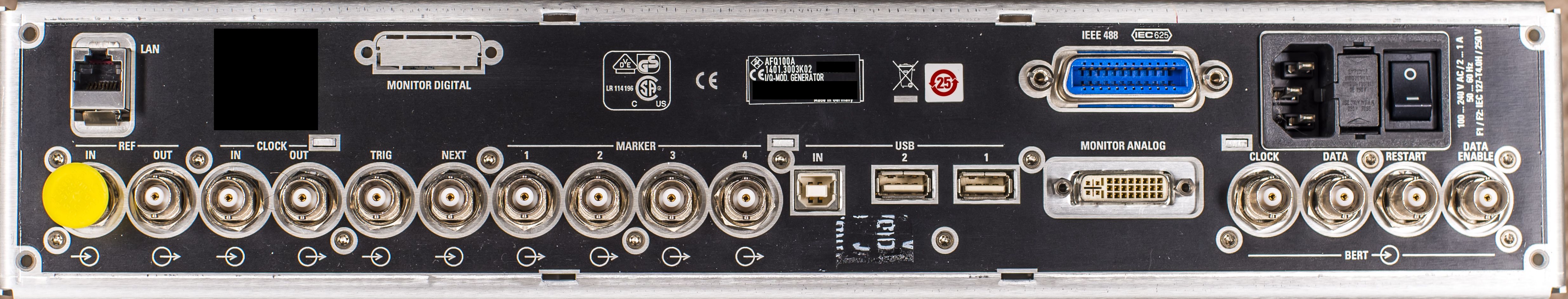

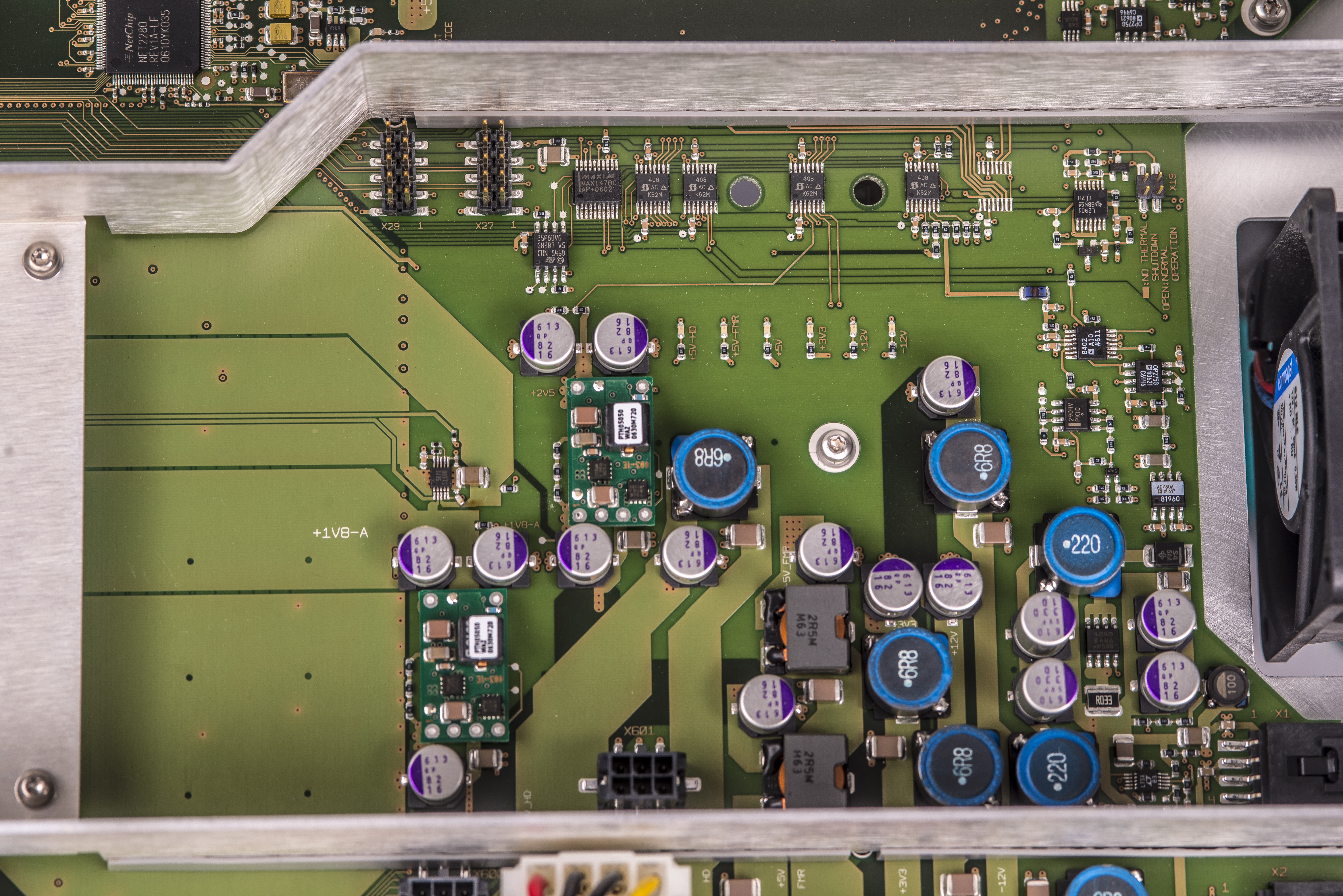

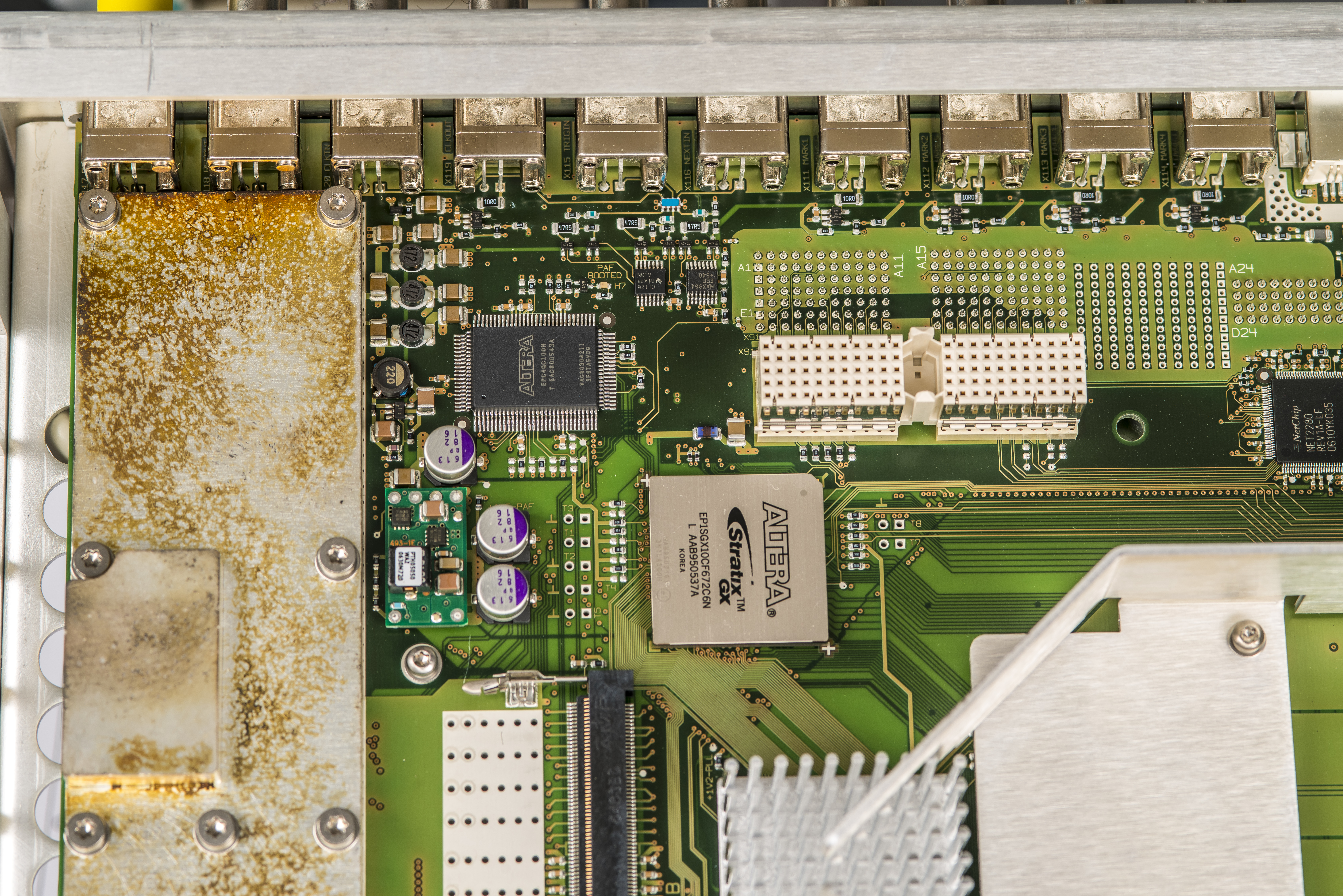

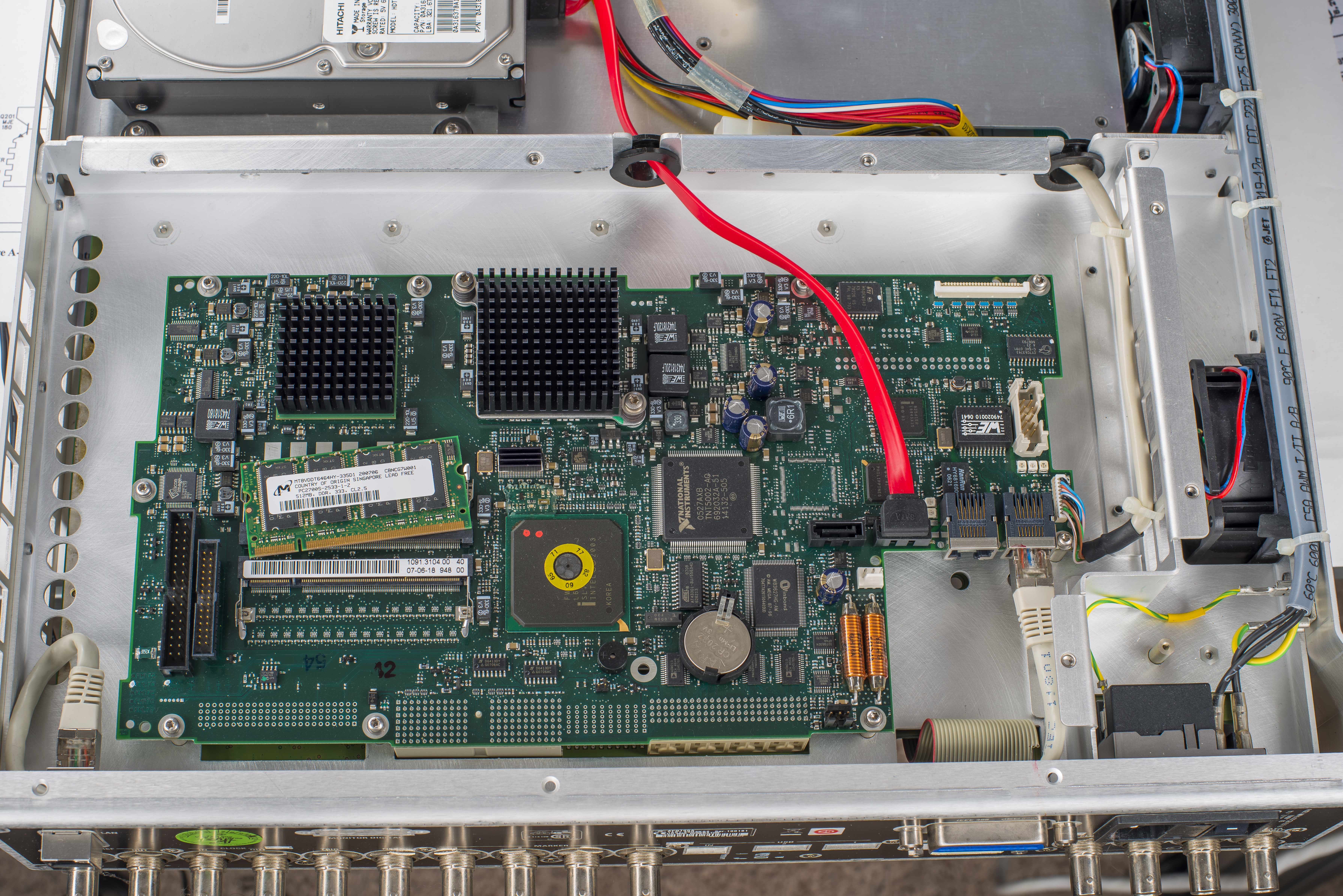

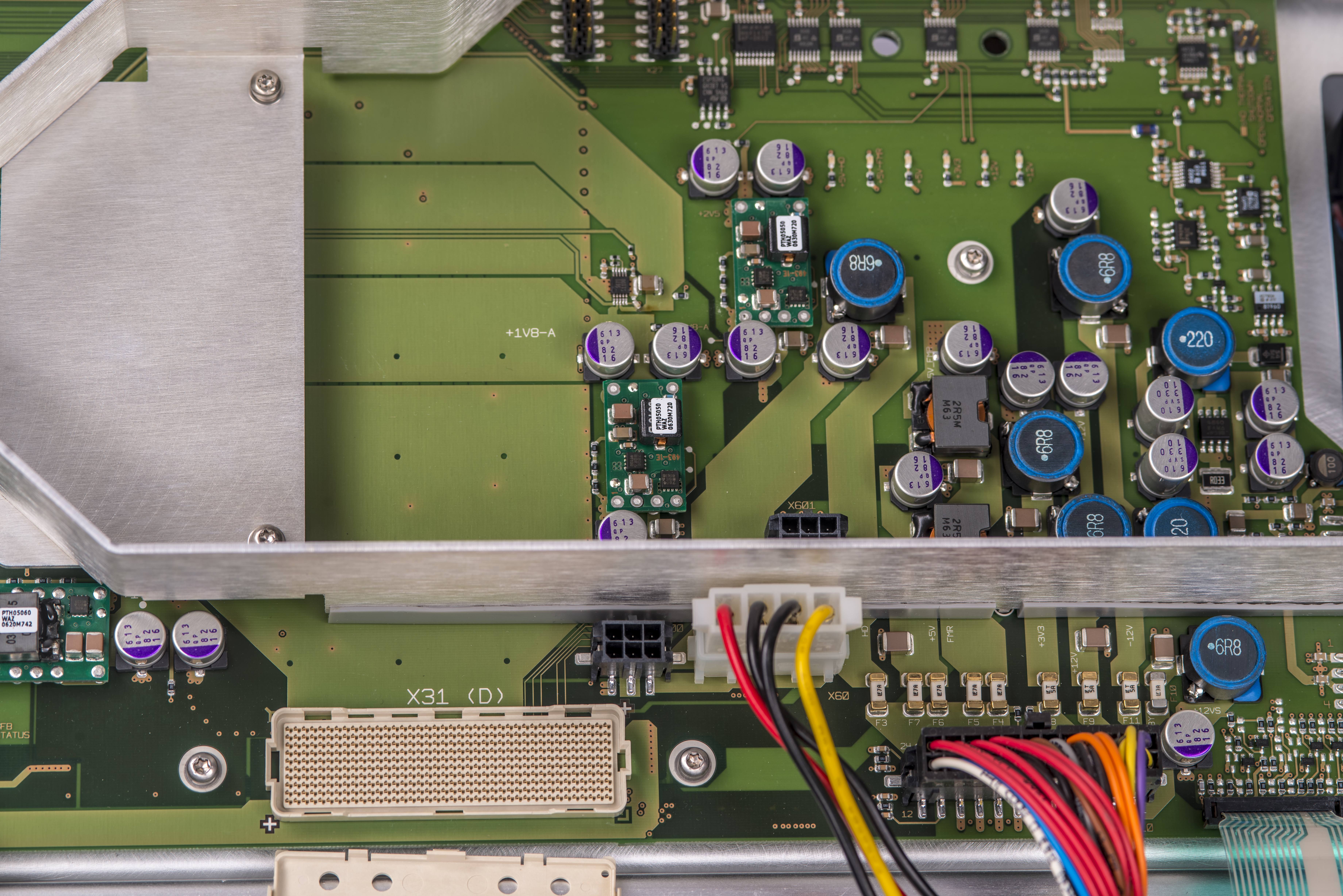

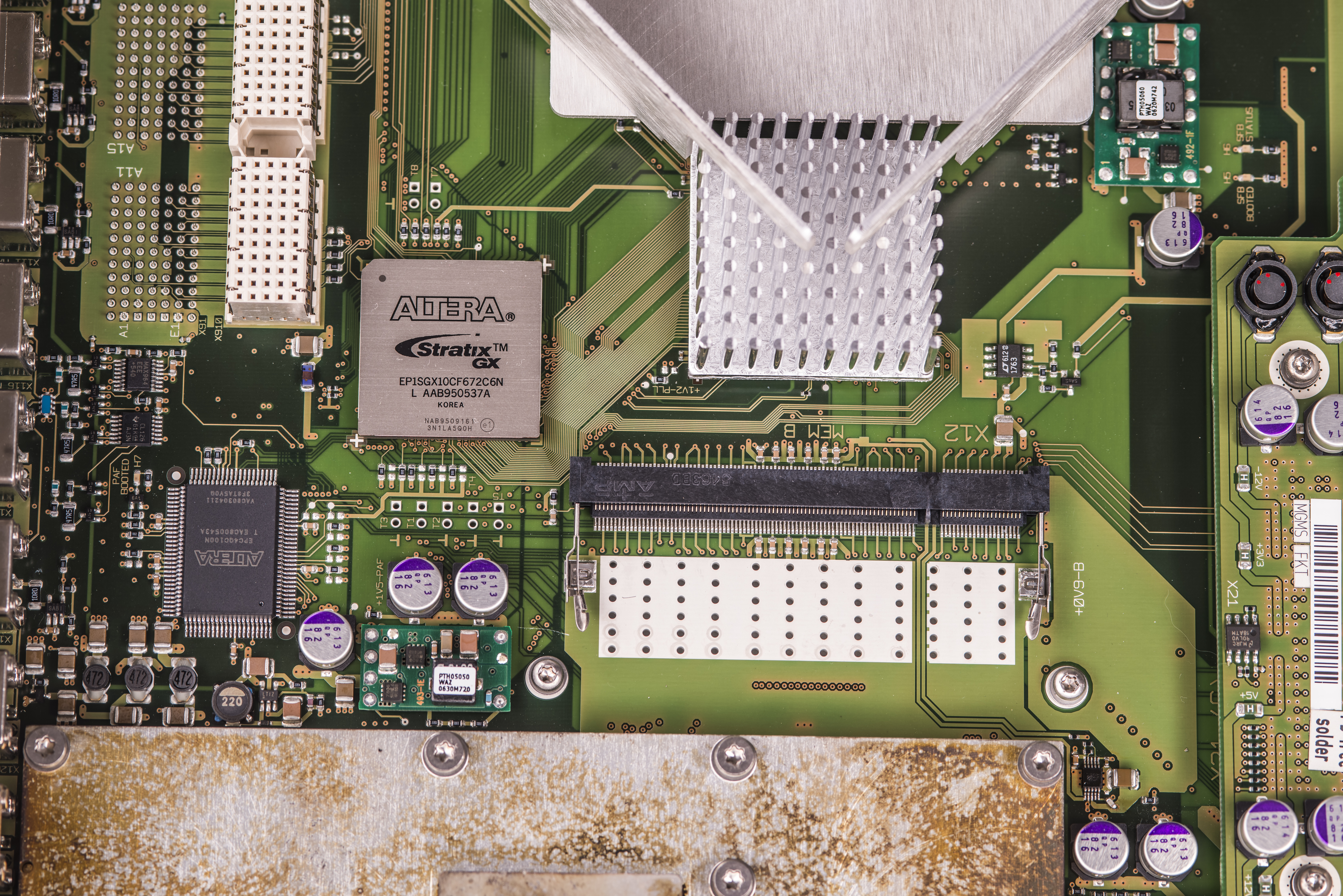

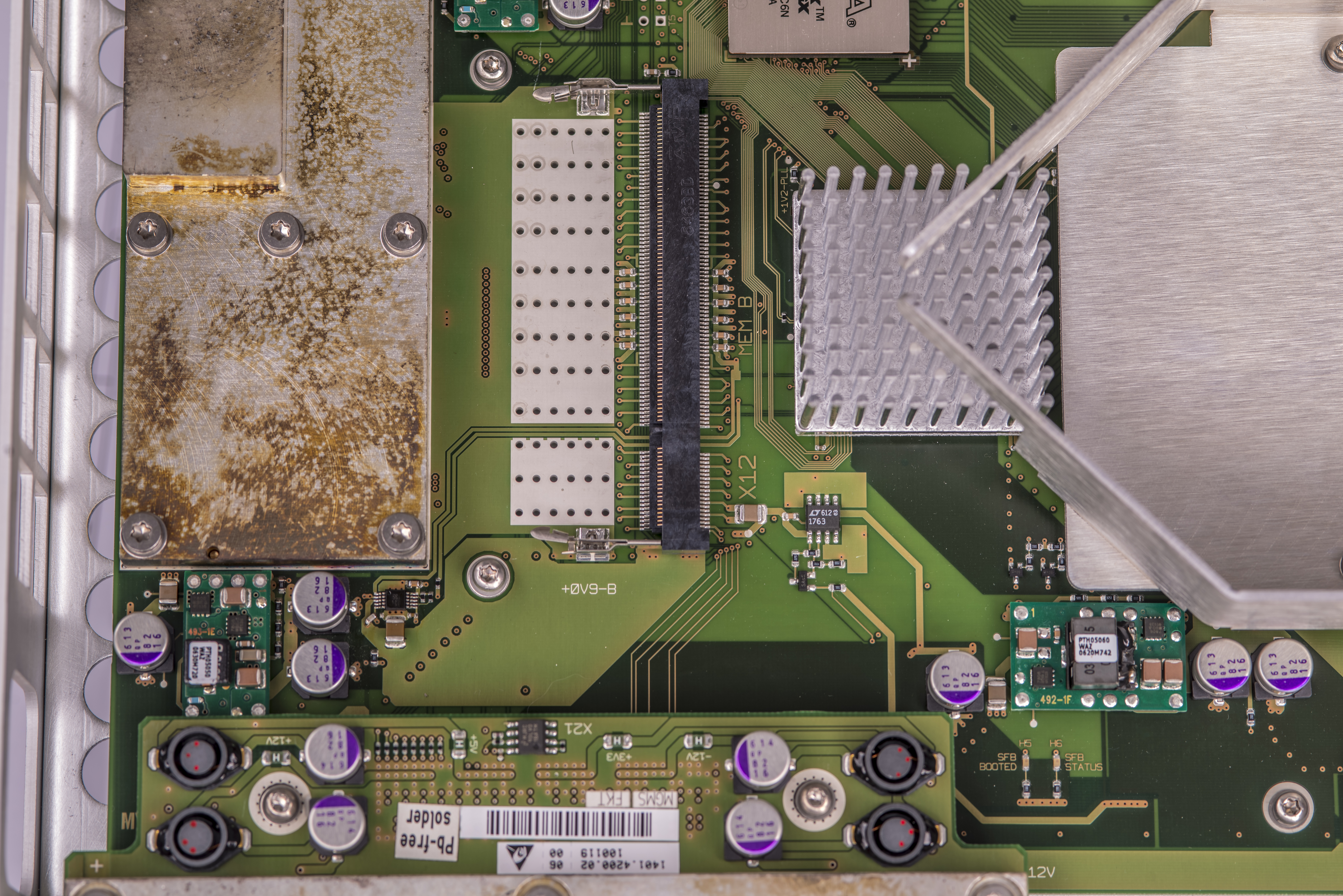

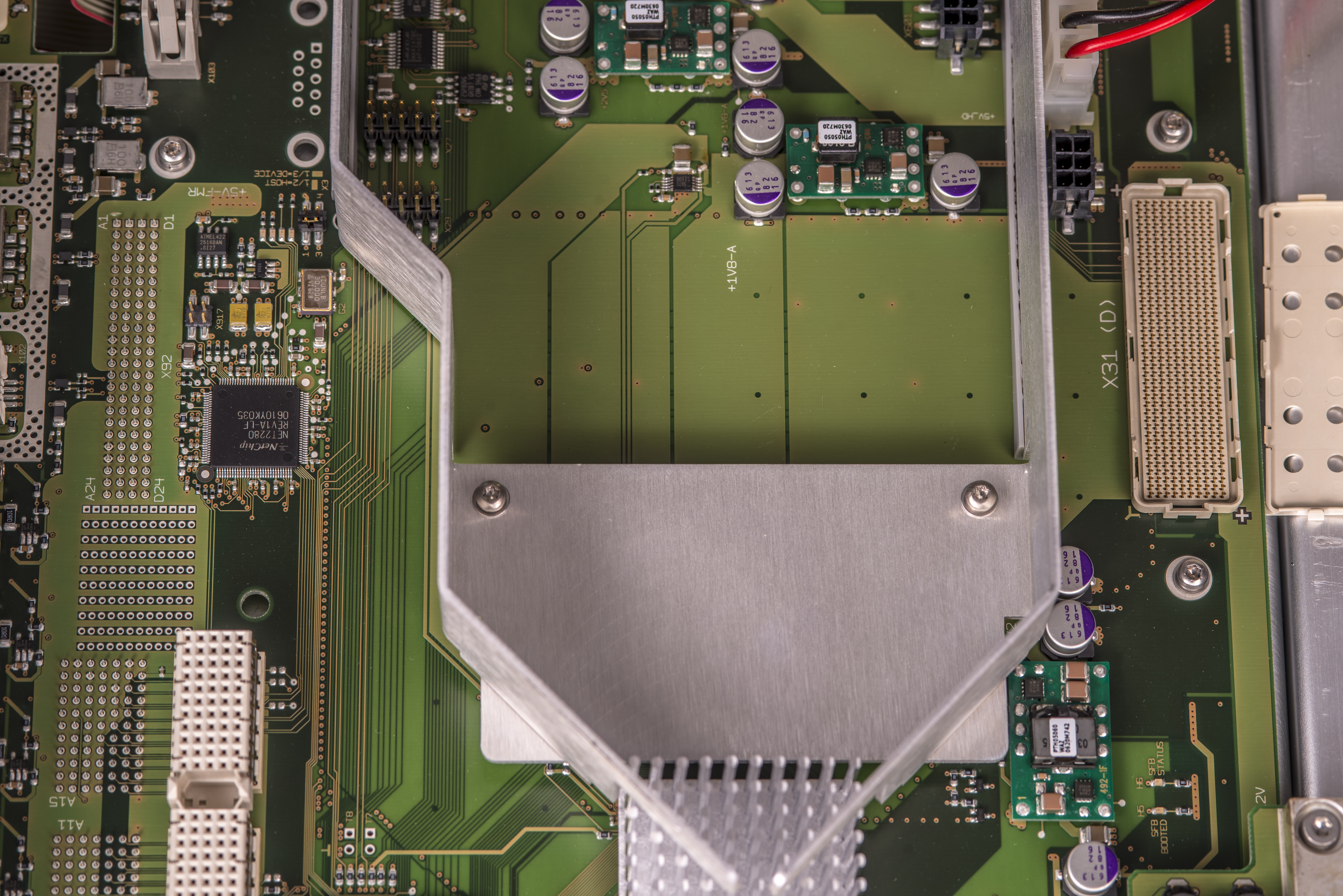

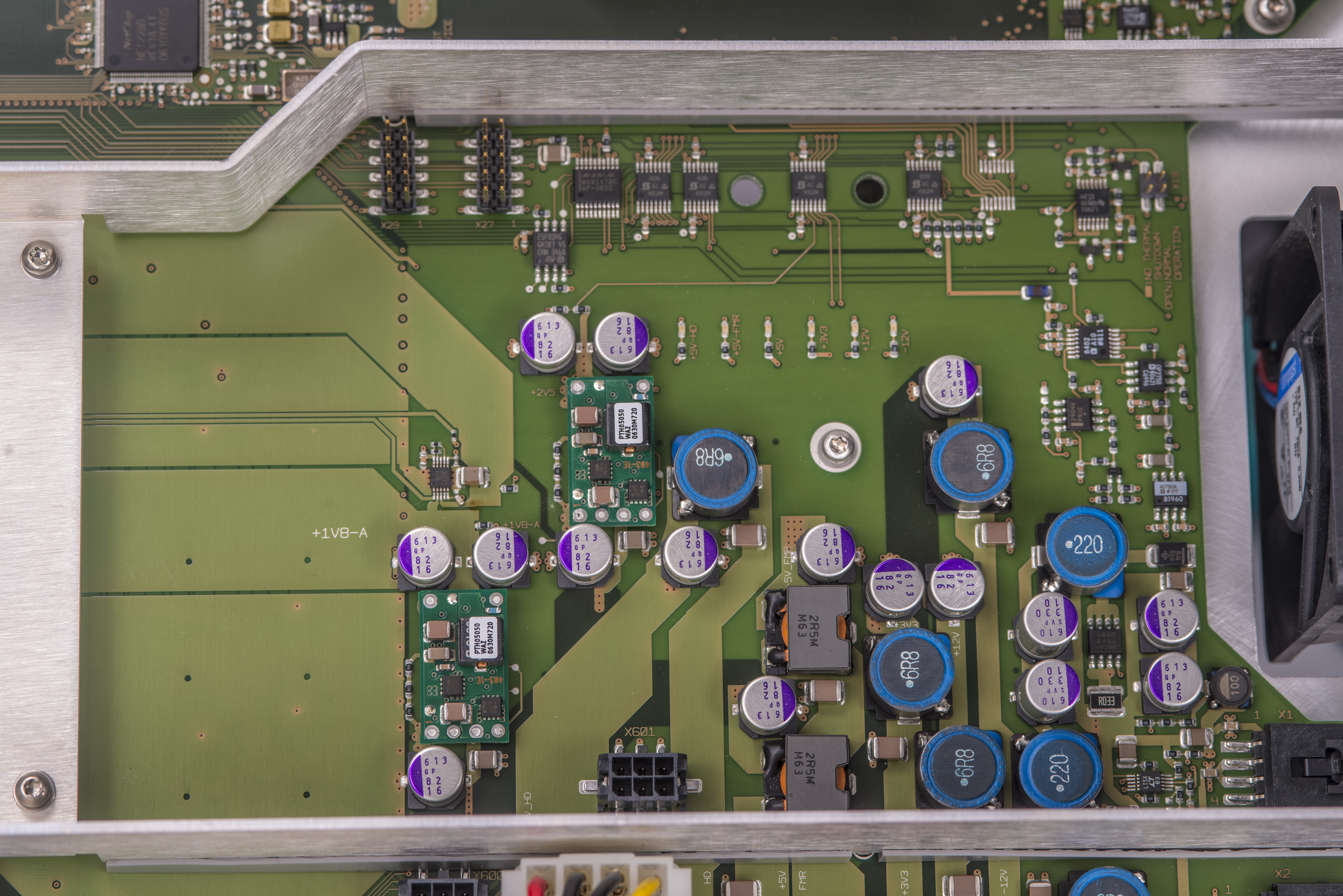

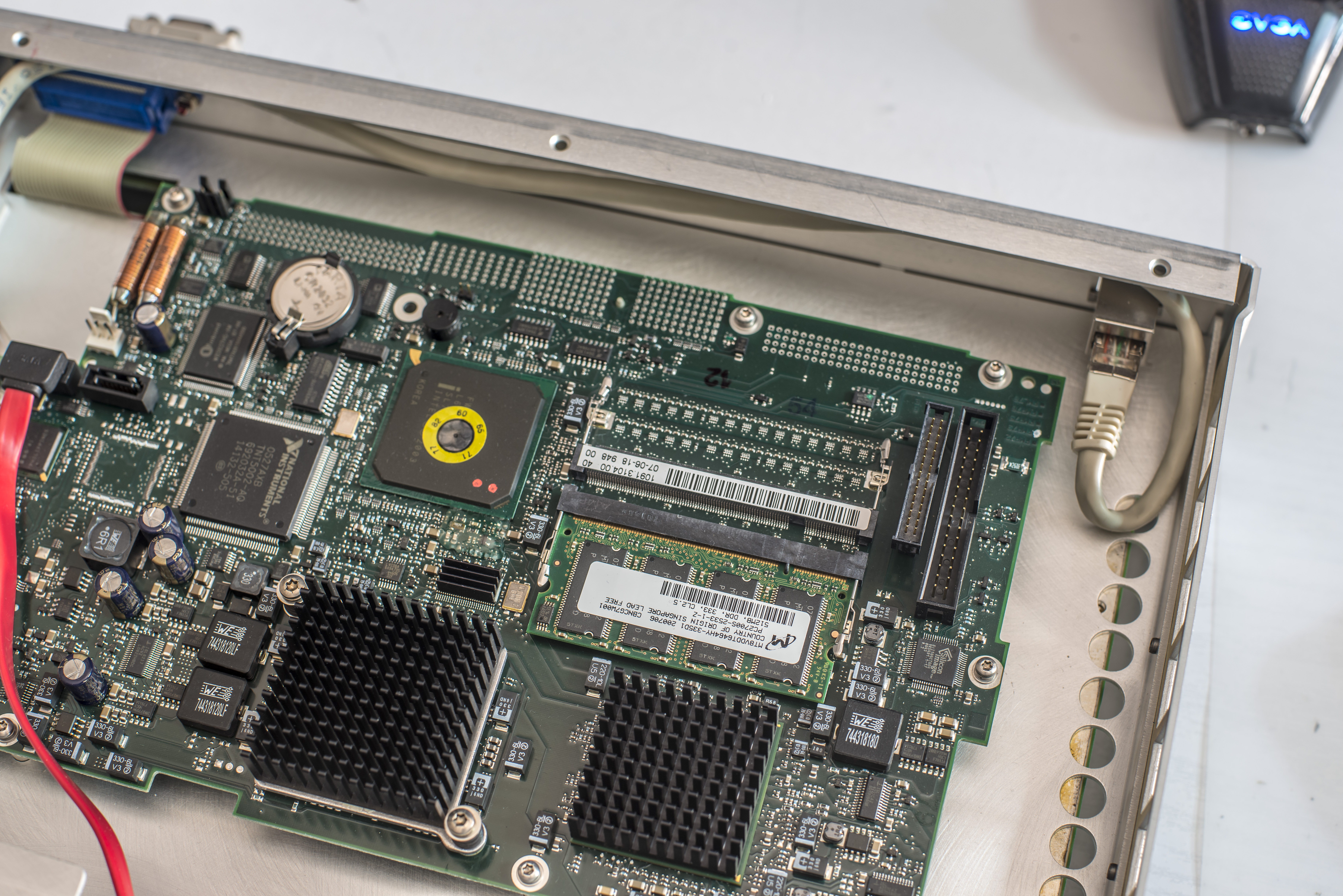

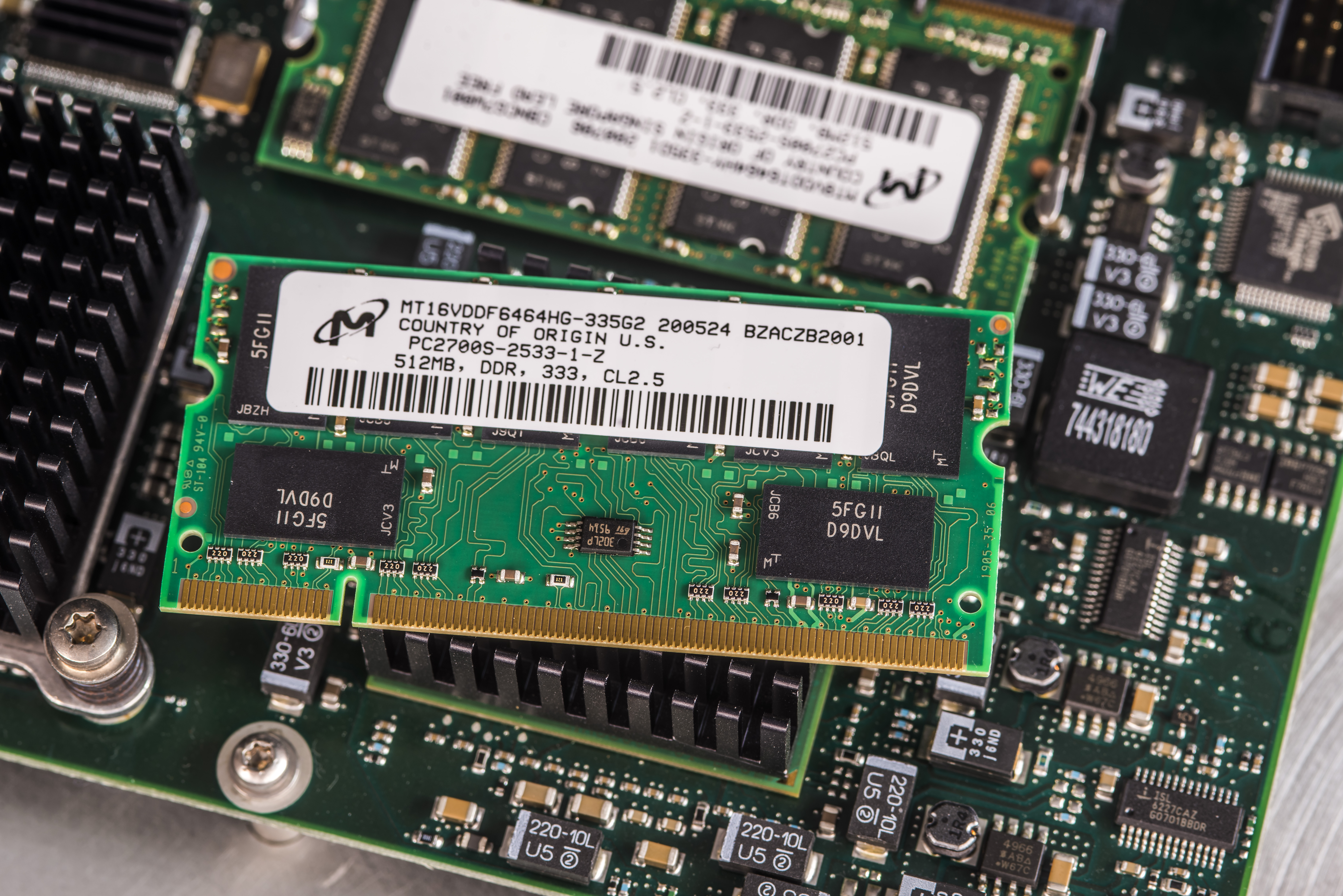

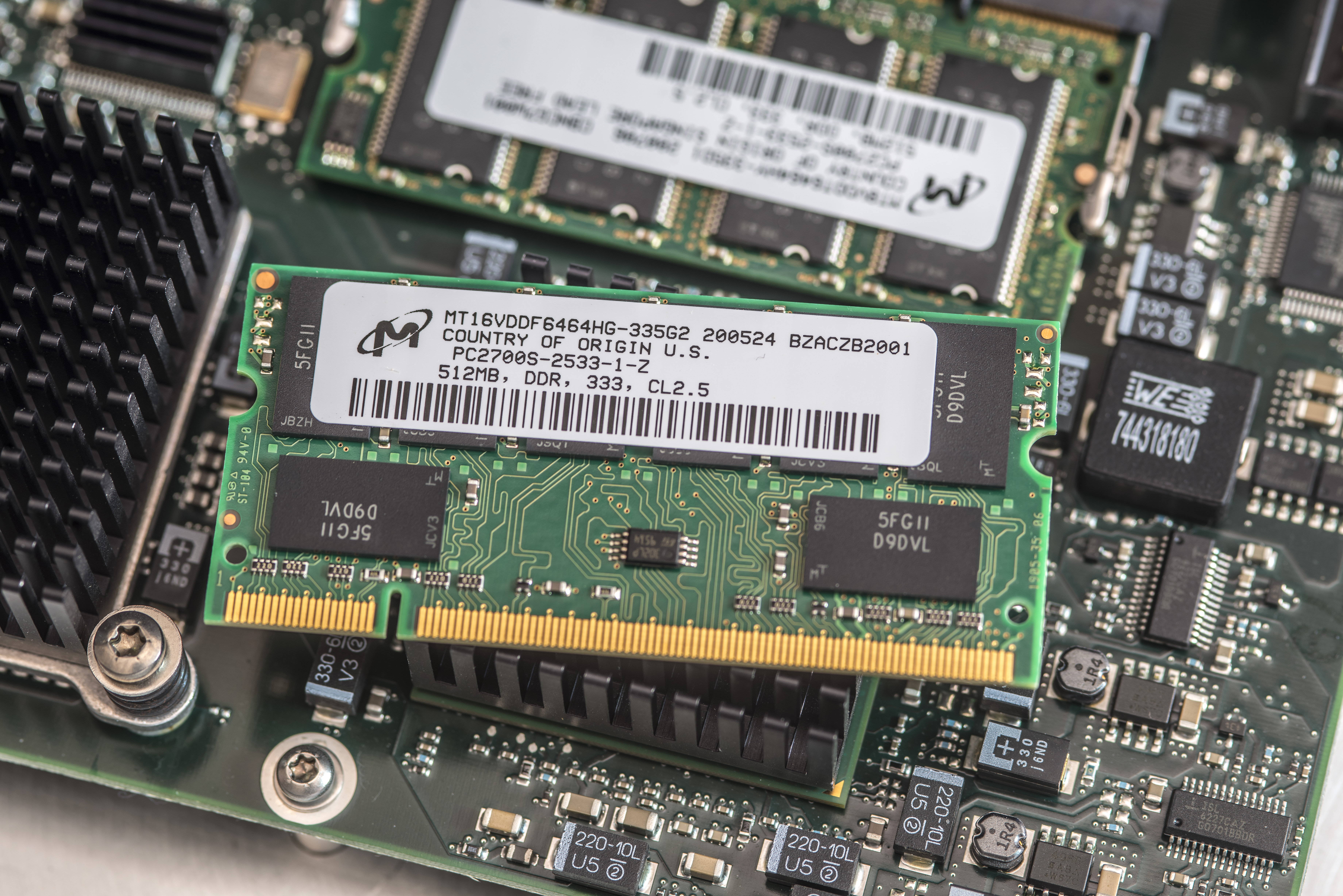

Teardown
Power supply replacement

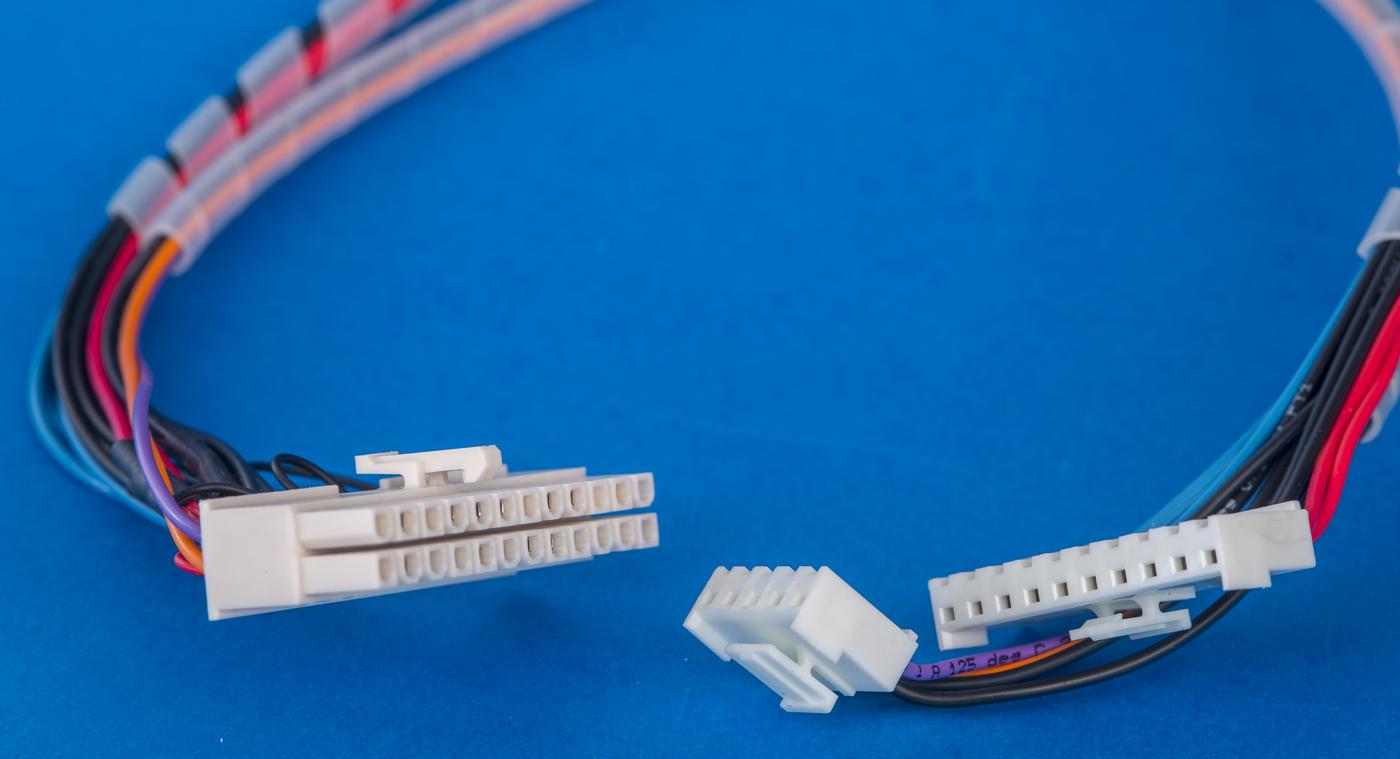

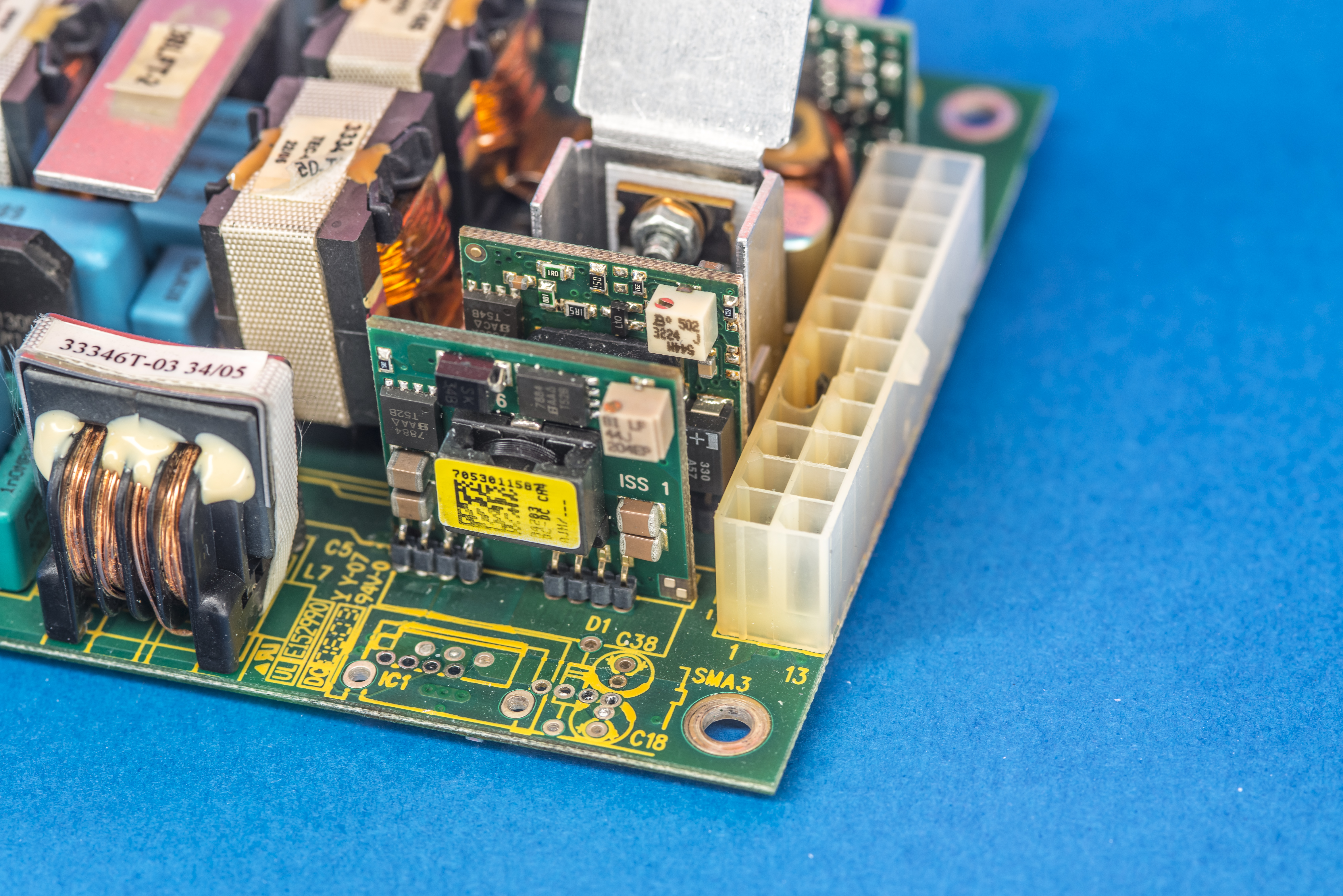

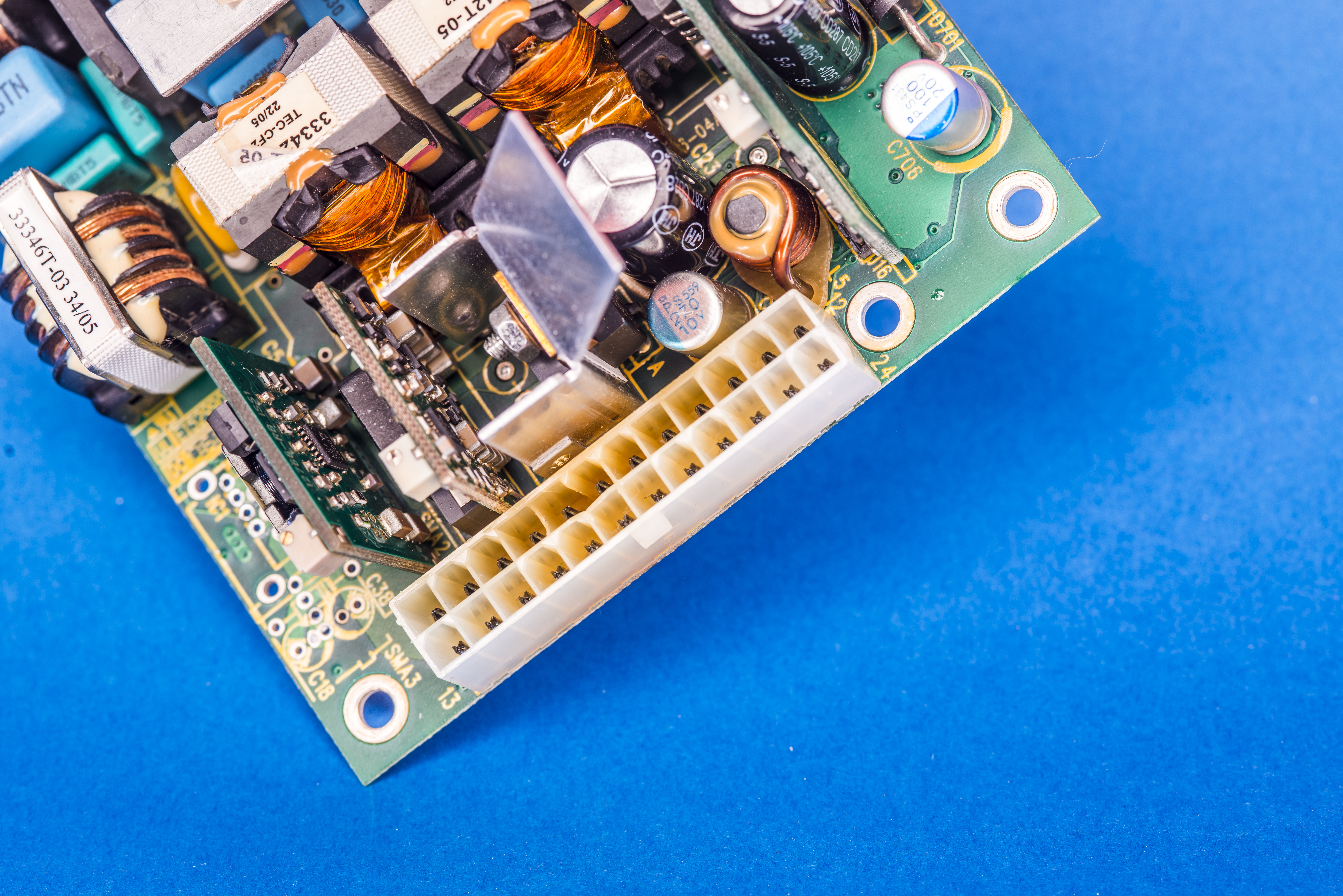

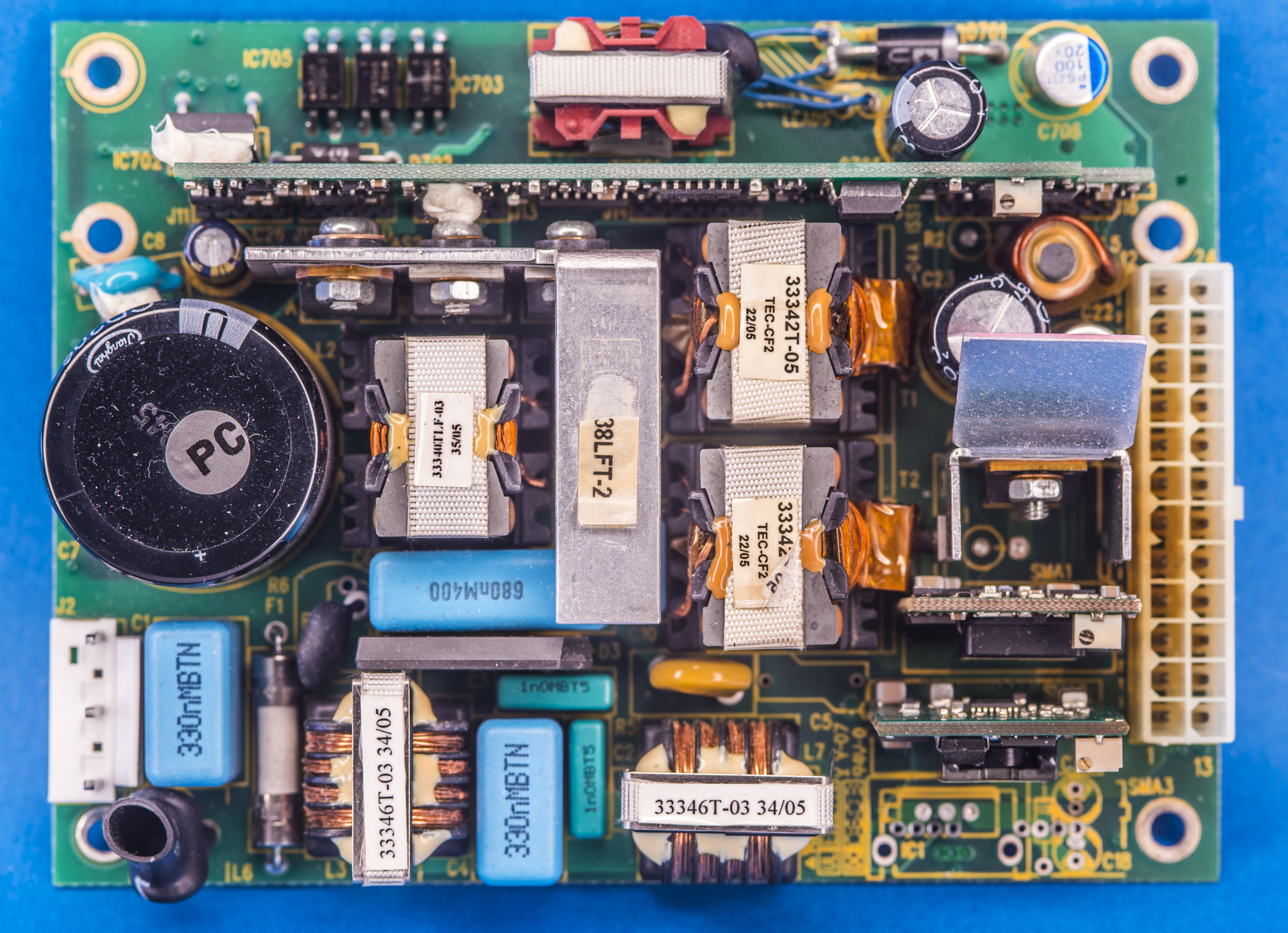

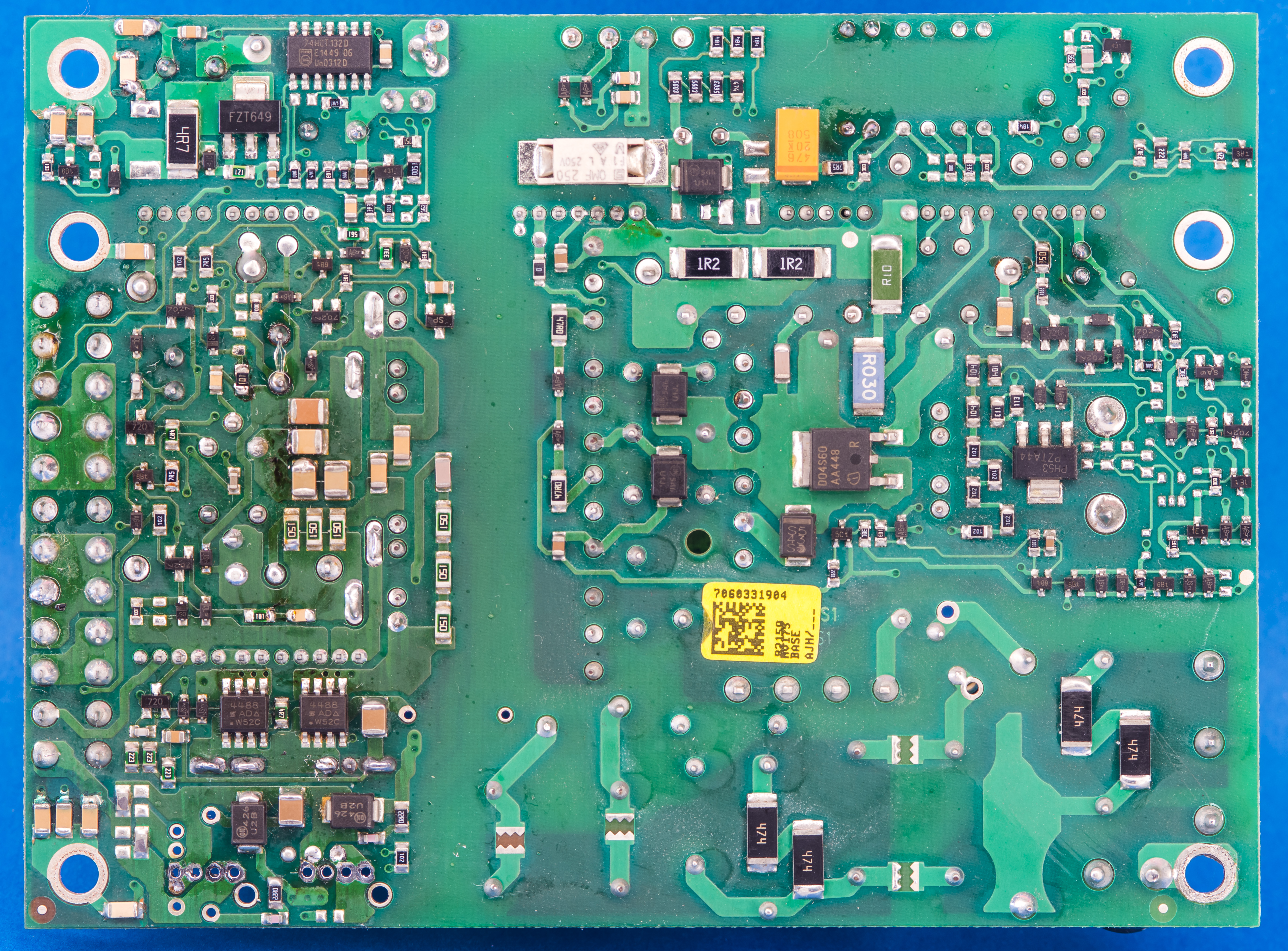

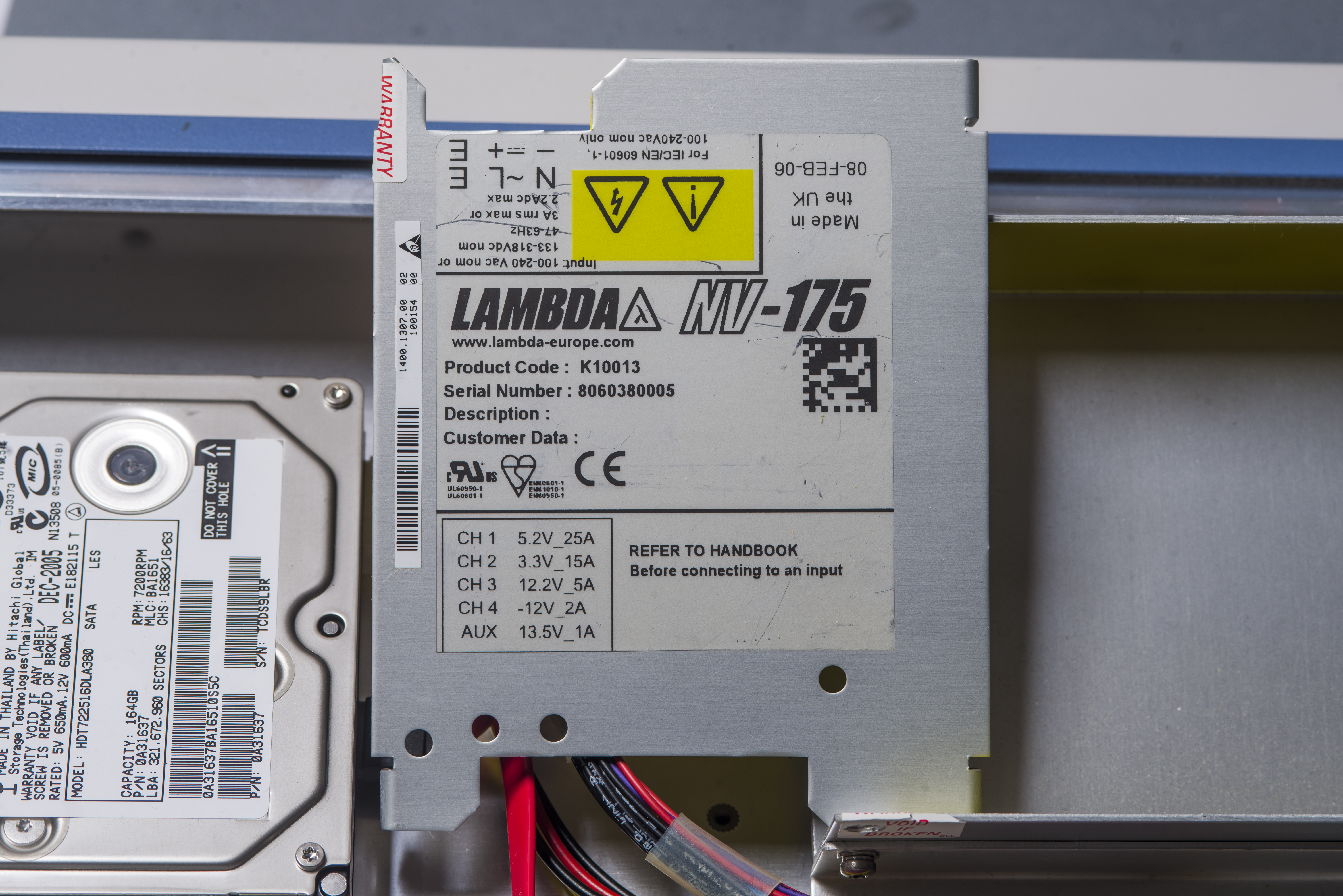

Original power supply was faulty and had bad output MiniFit Jr connector with noticeable discoloration.

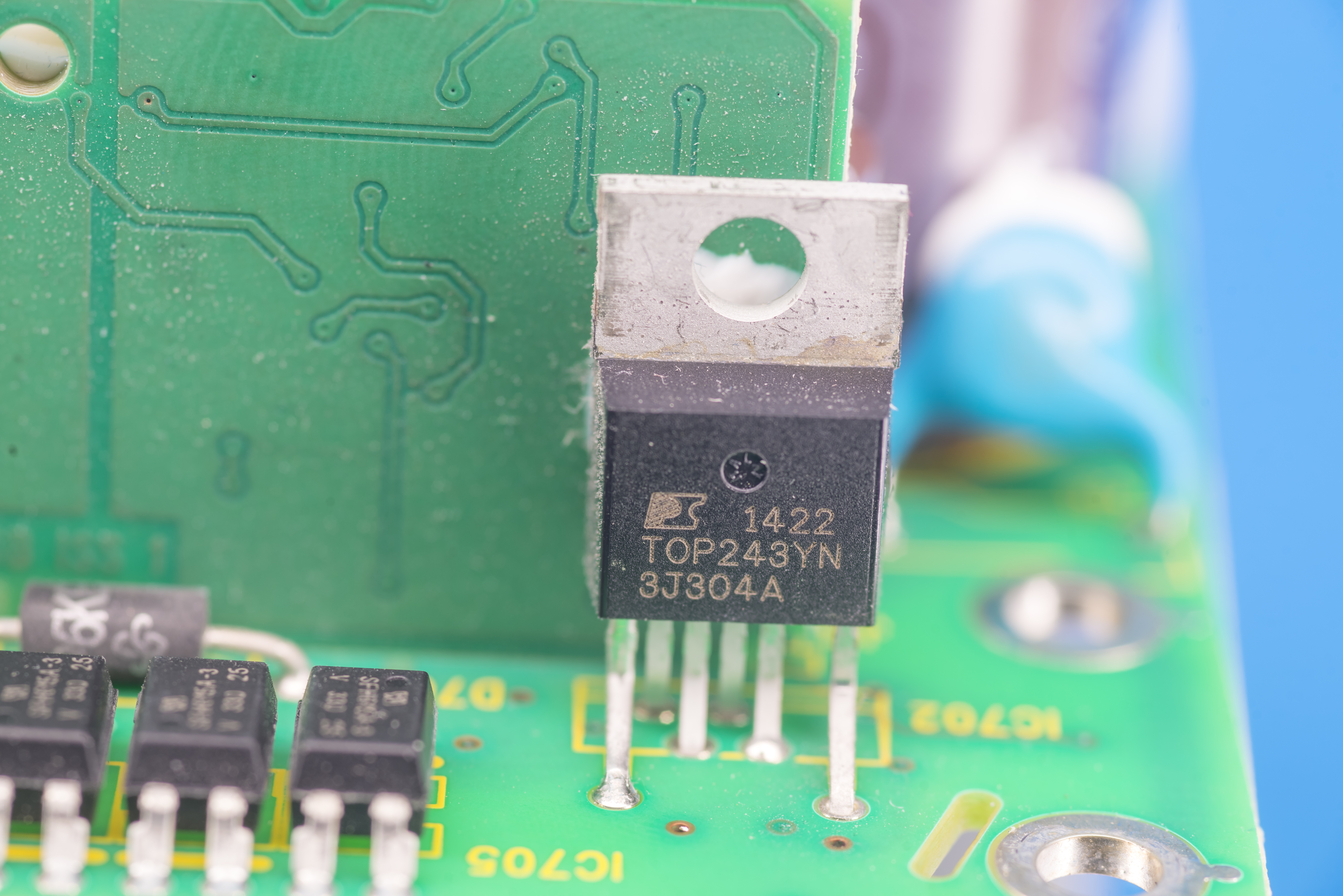

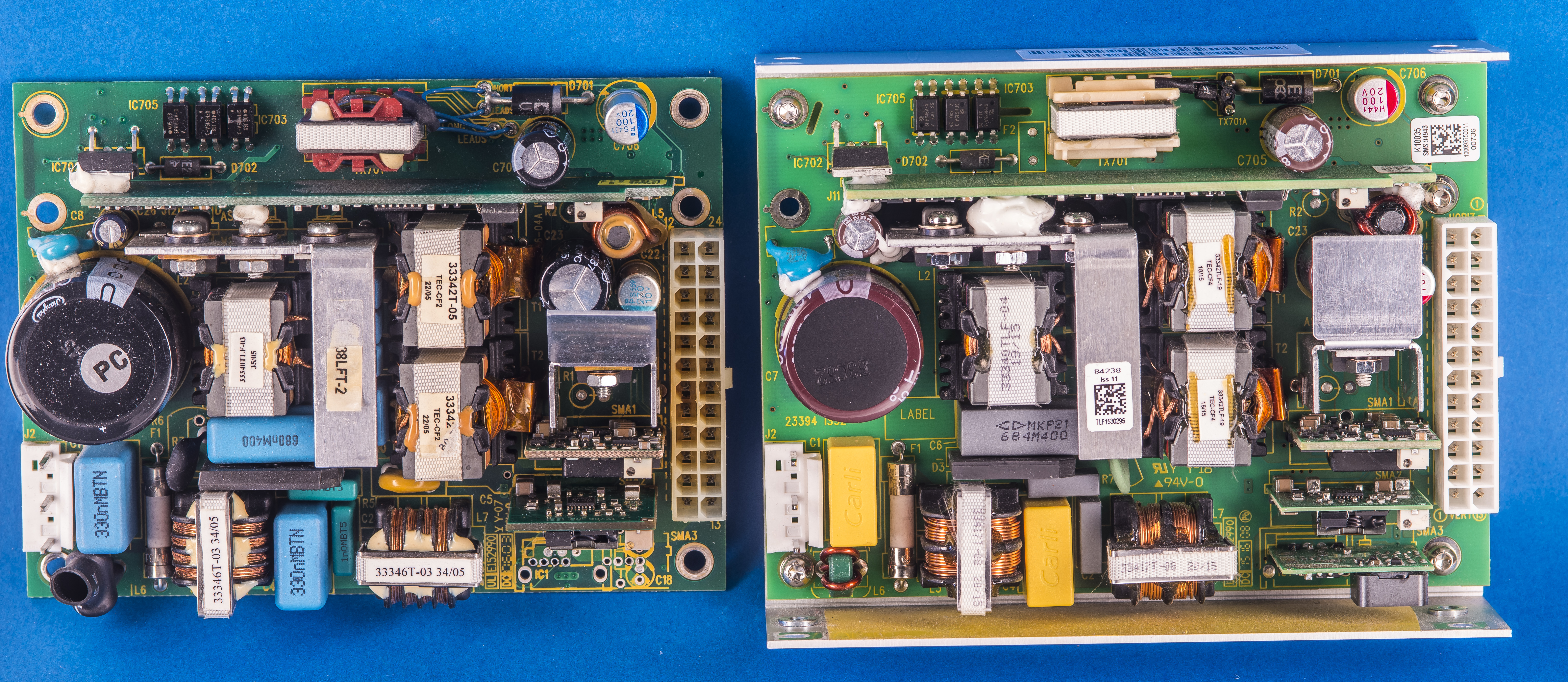

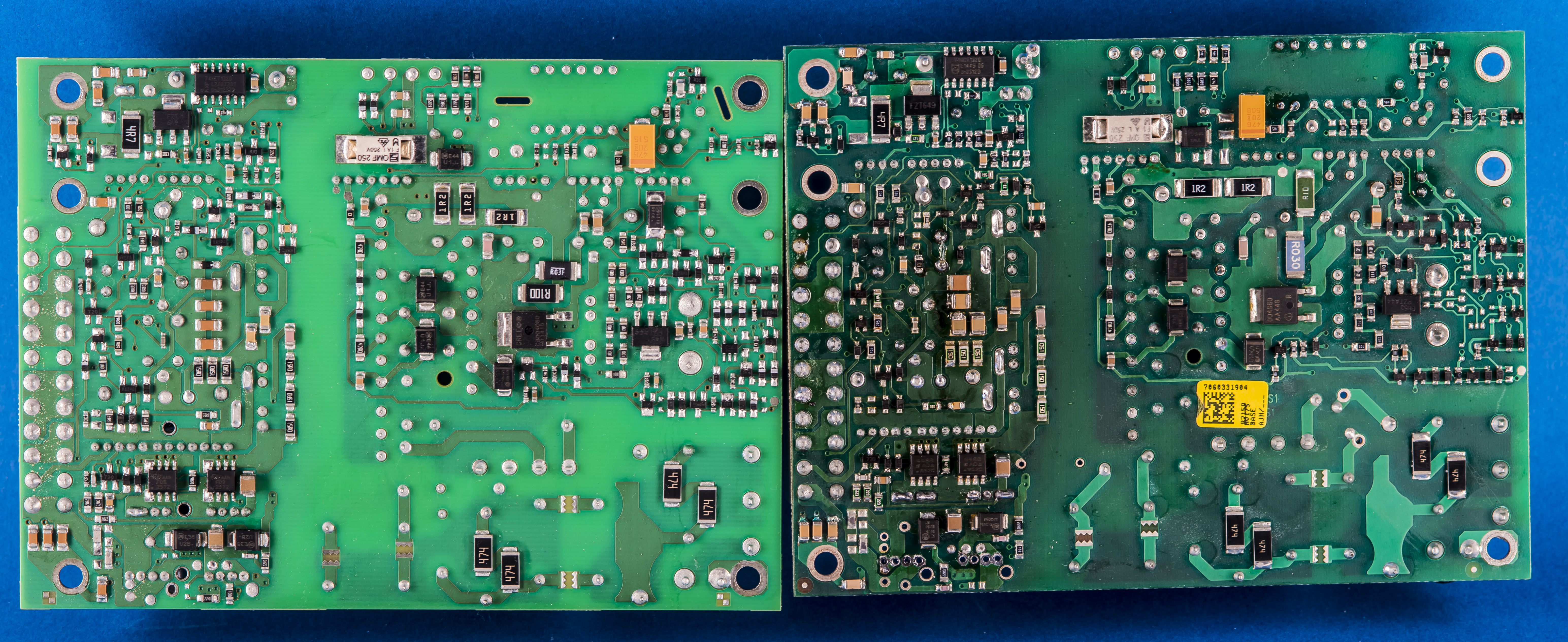

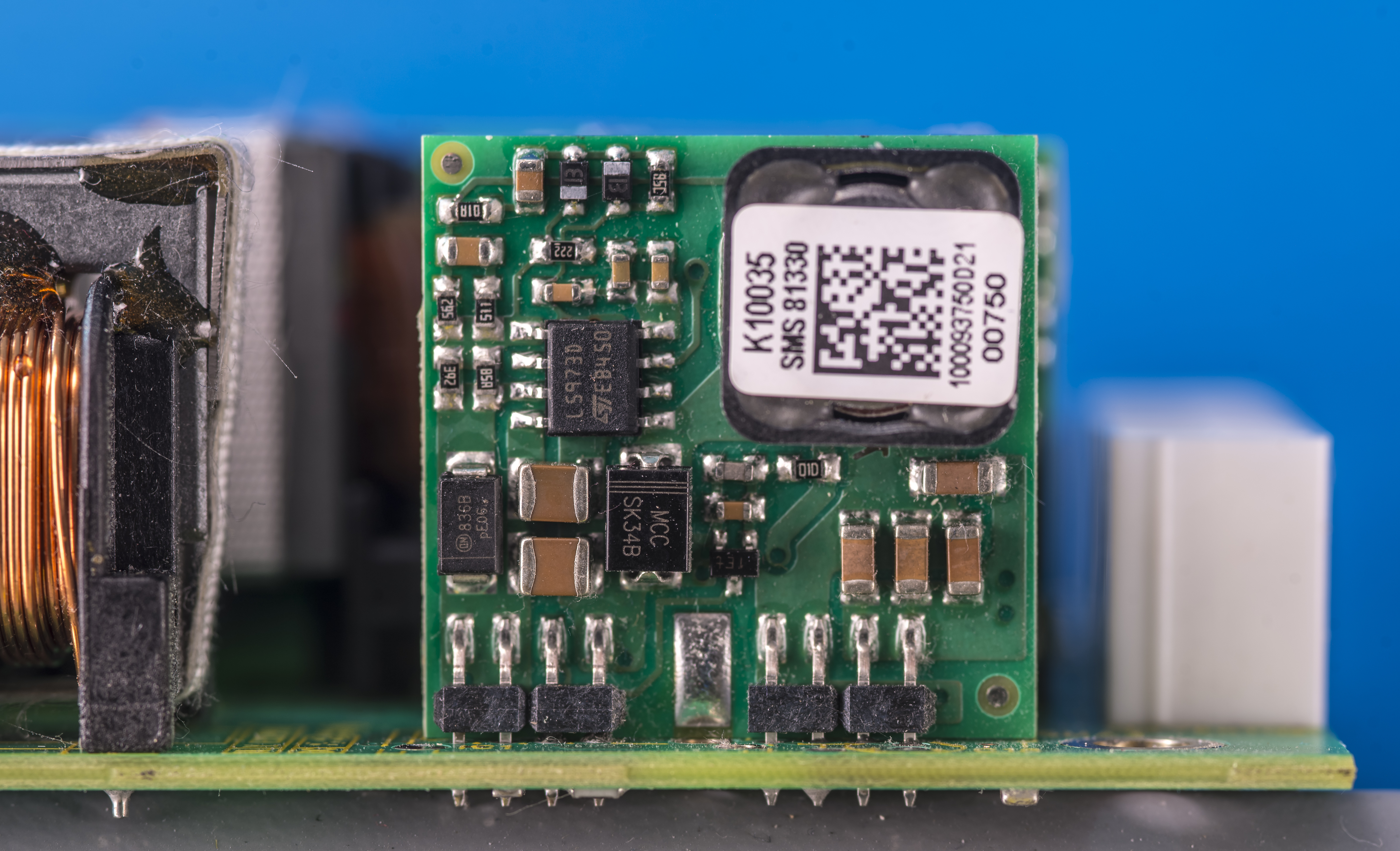

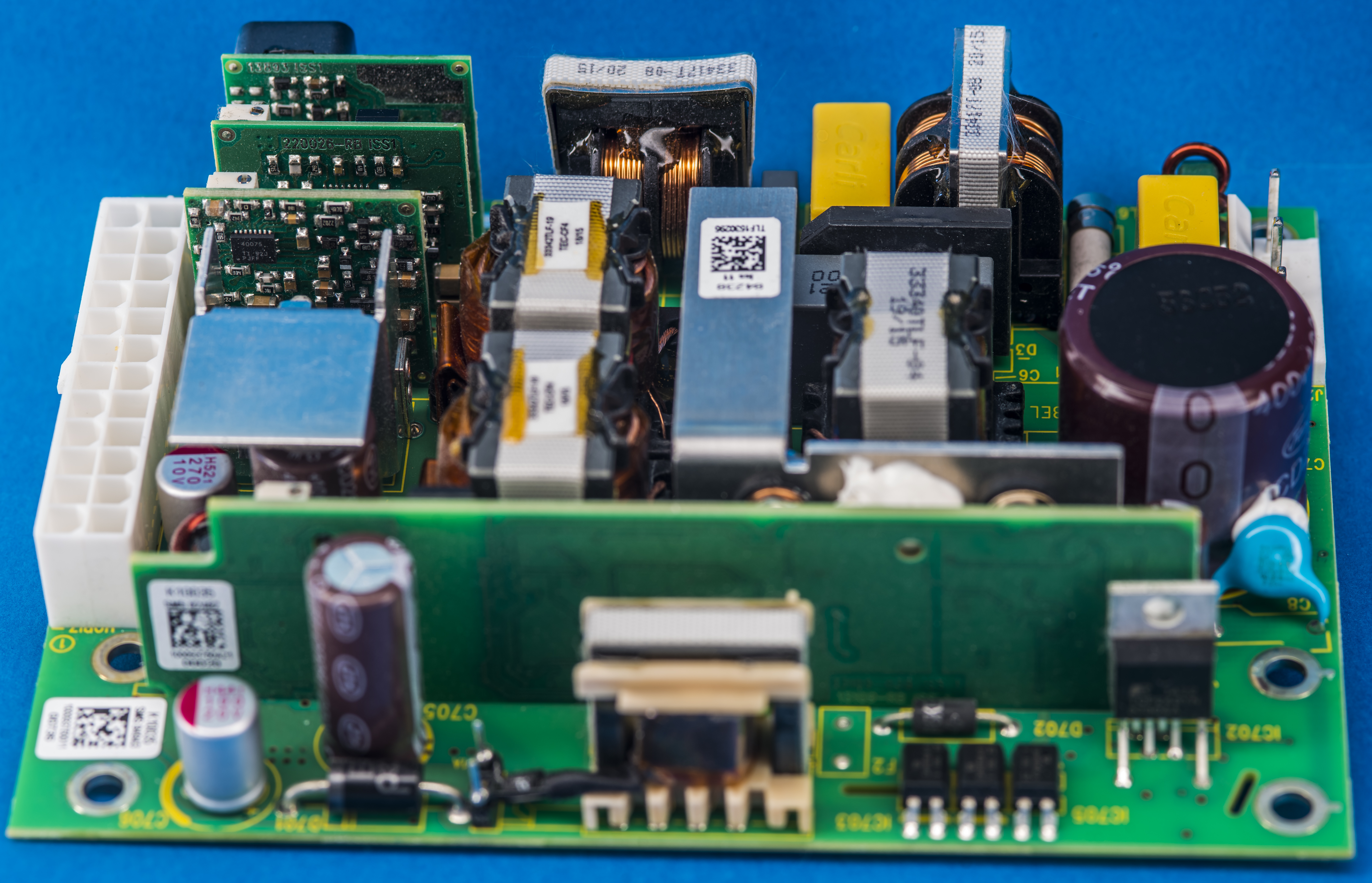

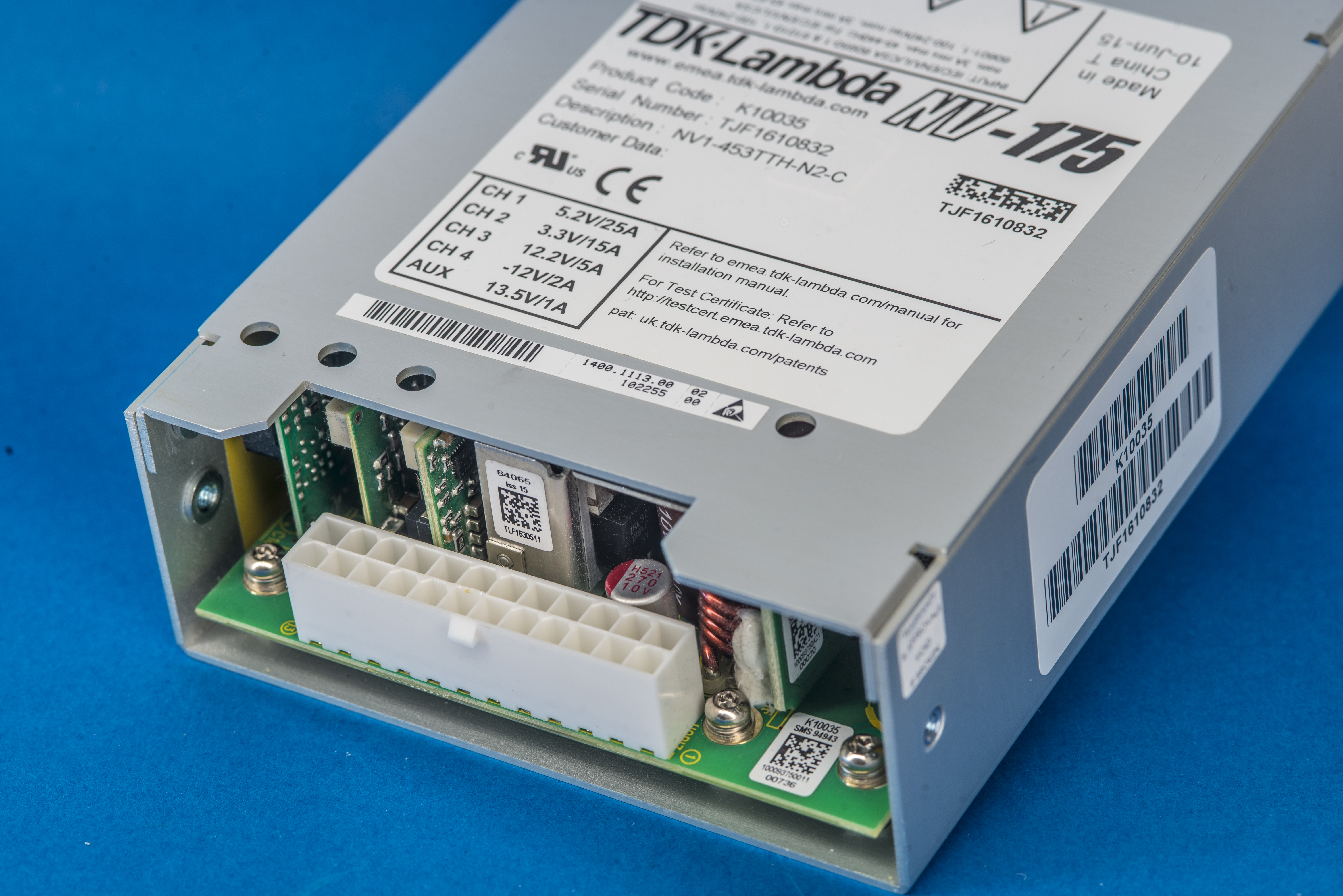

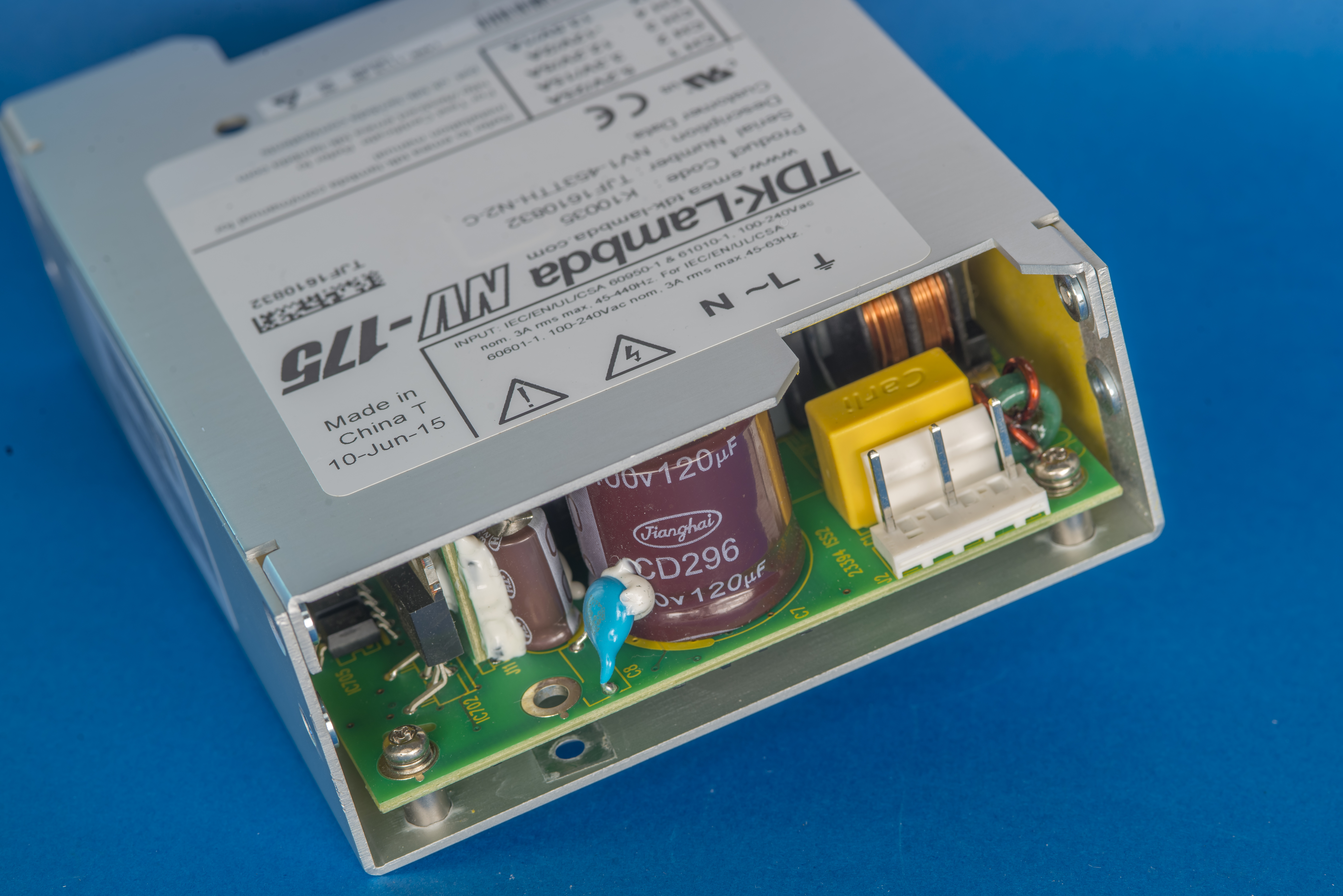

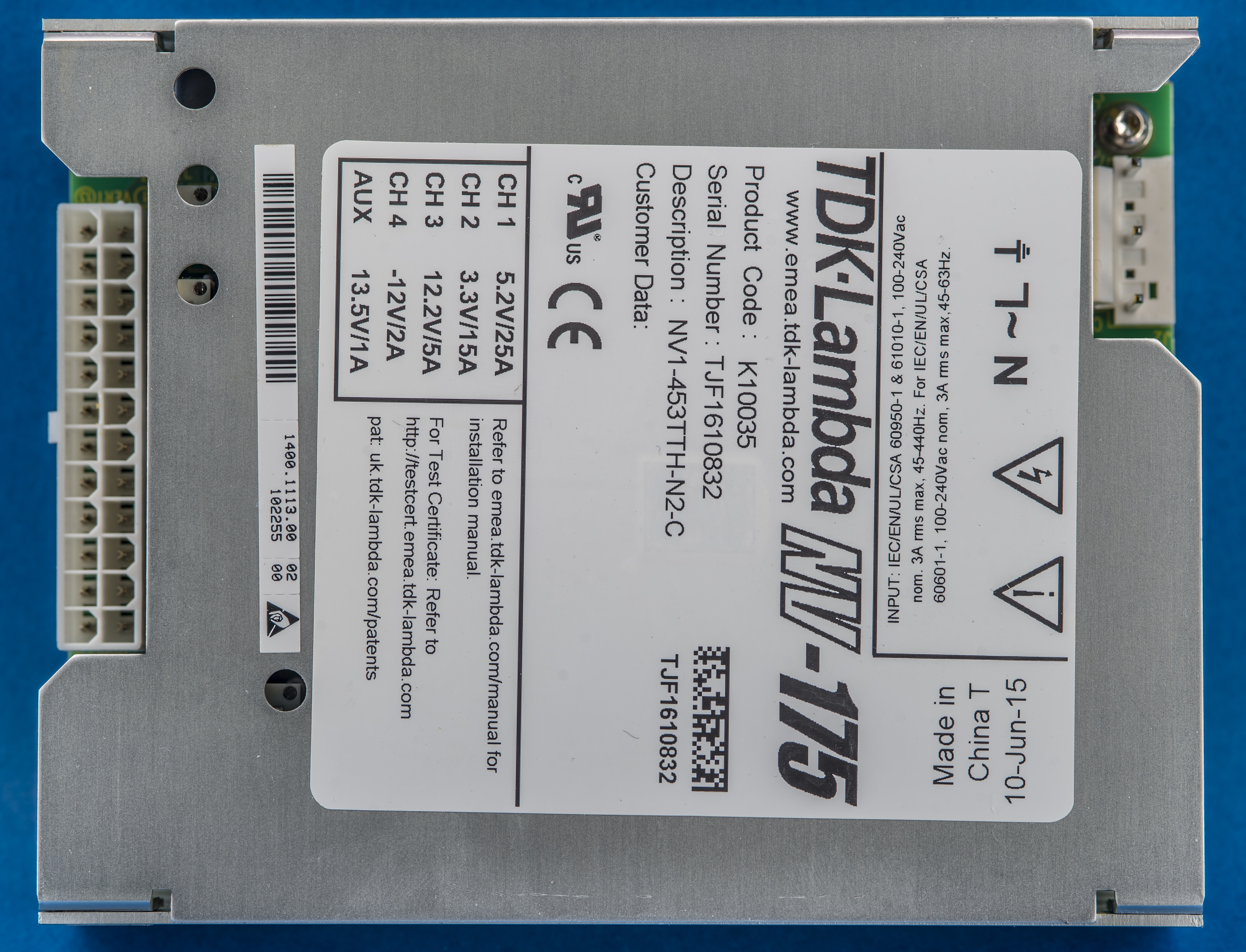

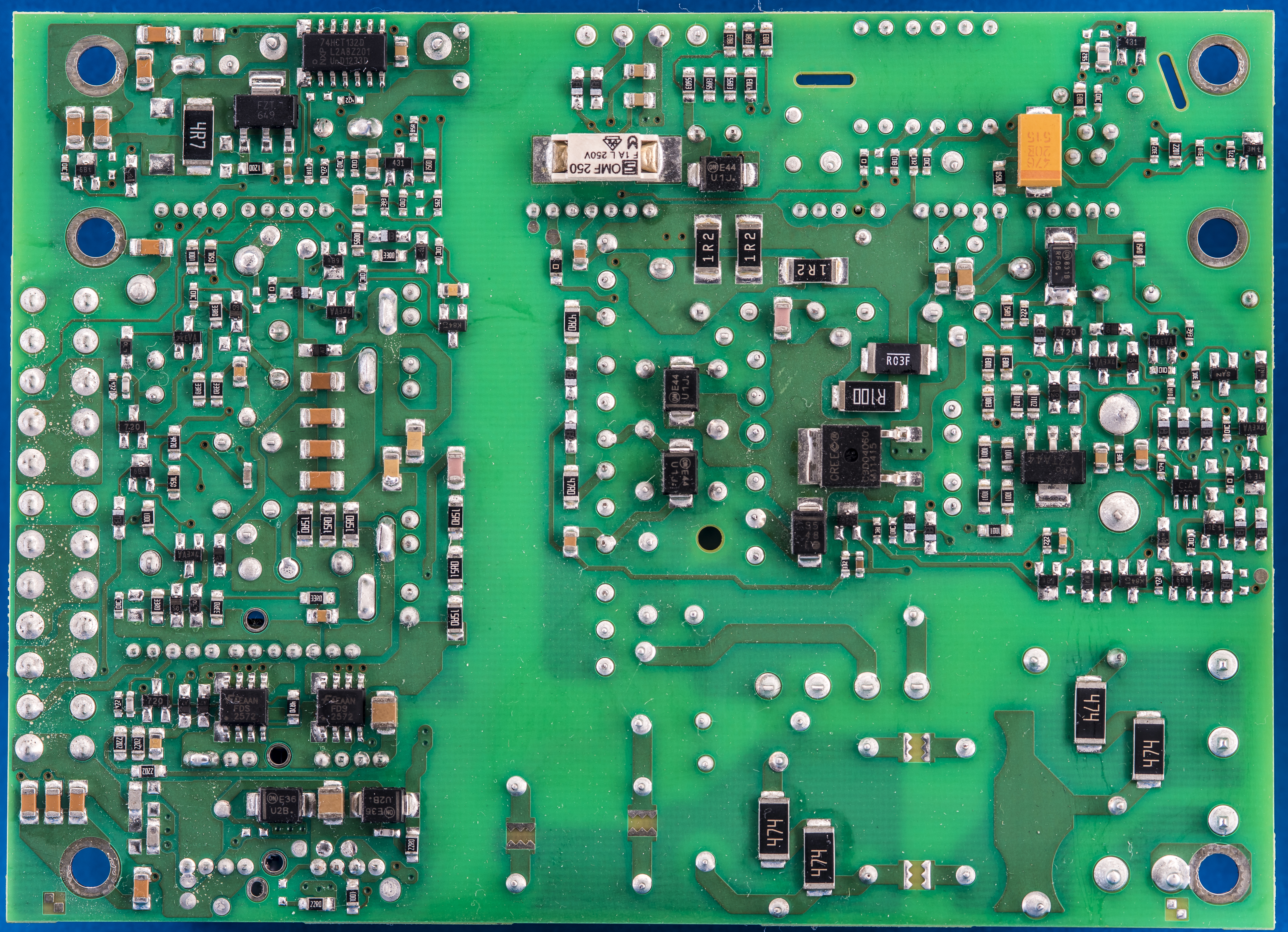

Replacement from eBay was acquired from a similar R&S insturment but with slightly different product code K10035. This power supply is also made by TDK-Lambda NV-175, part-number NV1-453TTH-N2-C. This supply also had five channels:
- Channel 1 – +5.2V 25A
- Channel 2 – +3.3V 15A
- Channel 3 – +12.2V 5A
- Channel 4 – -12V 2A
- Channel Aux 5 – +13.5V 1A

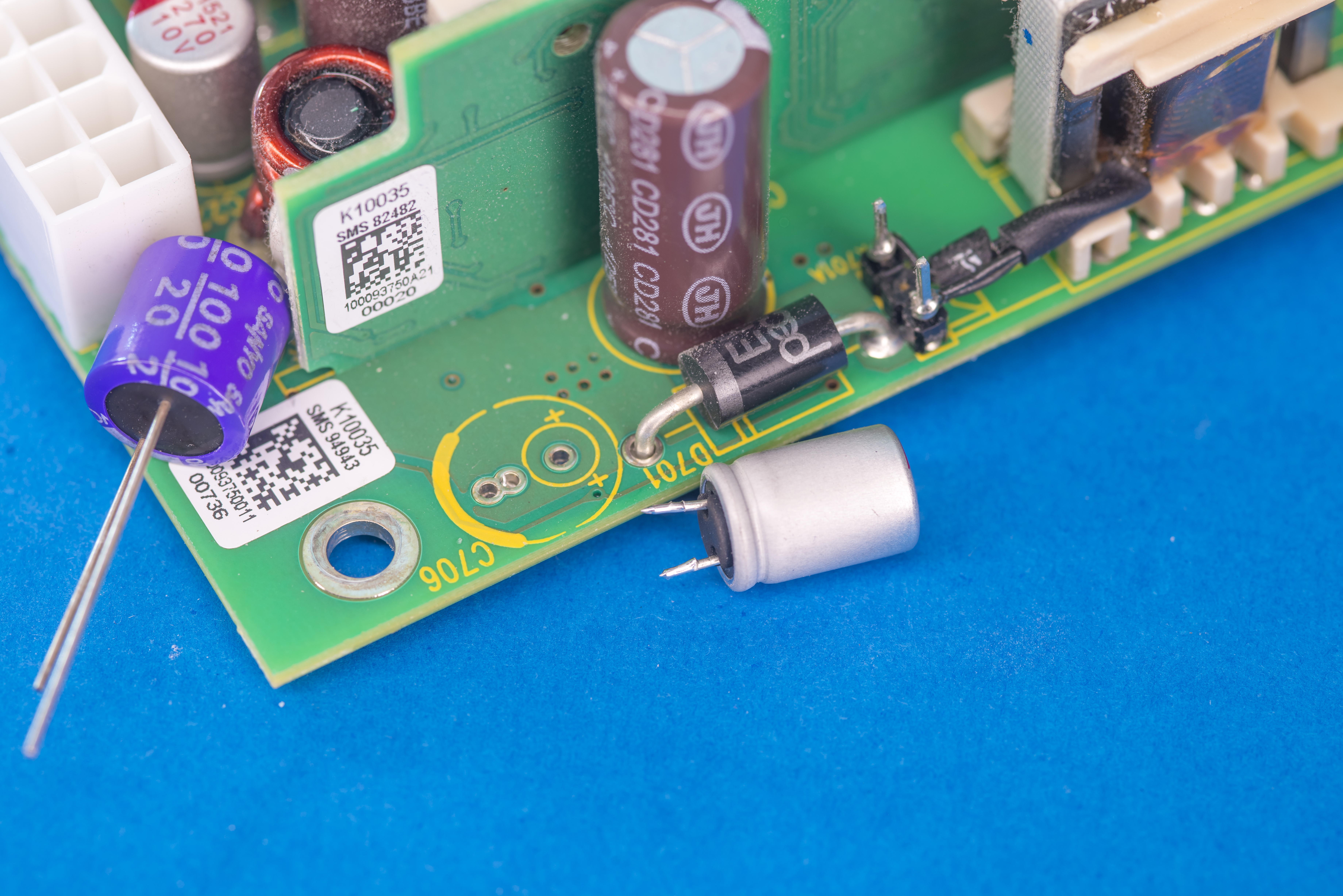

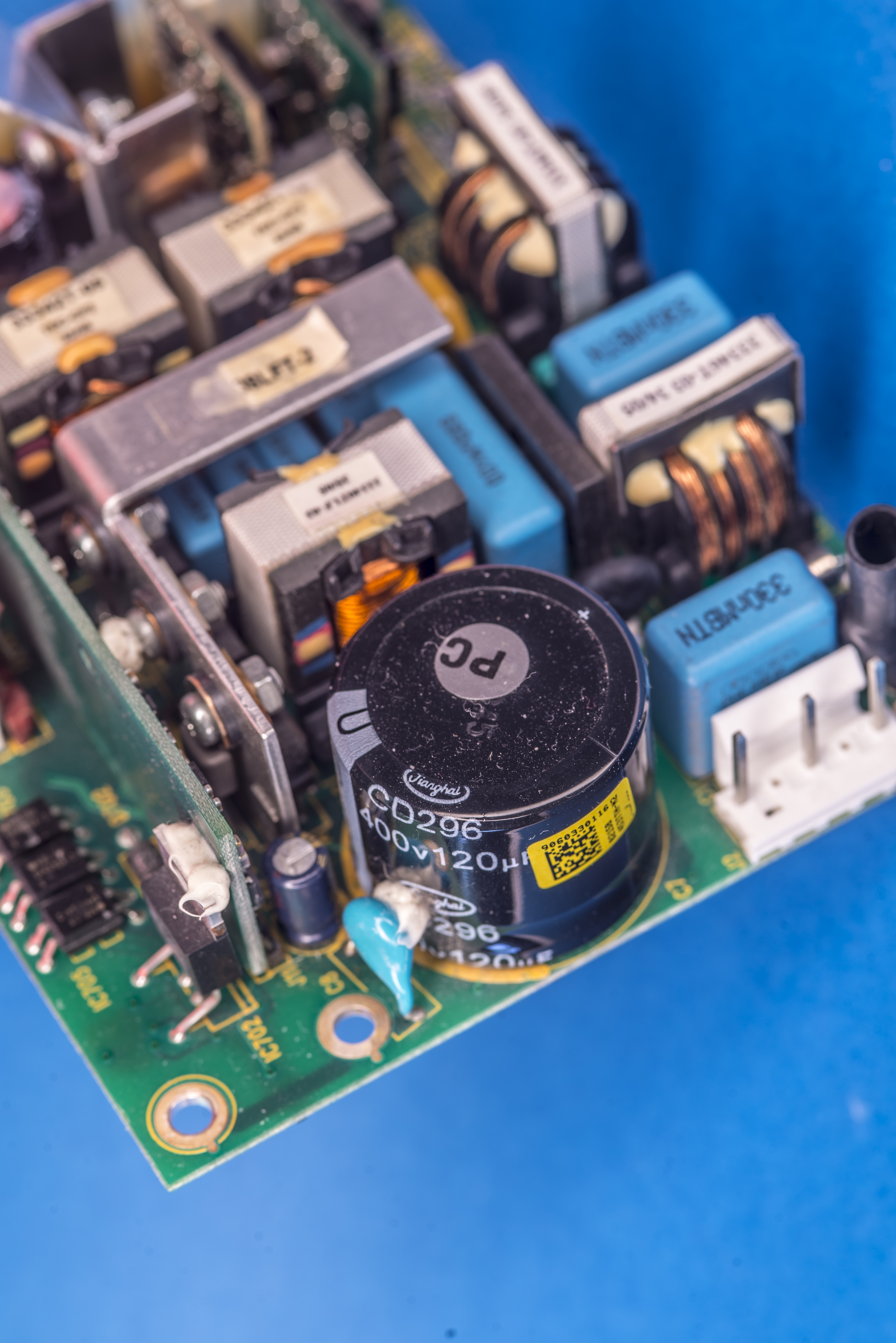

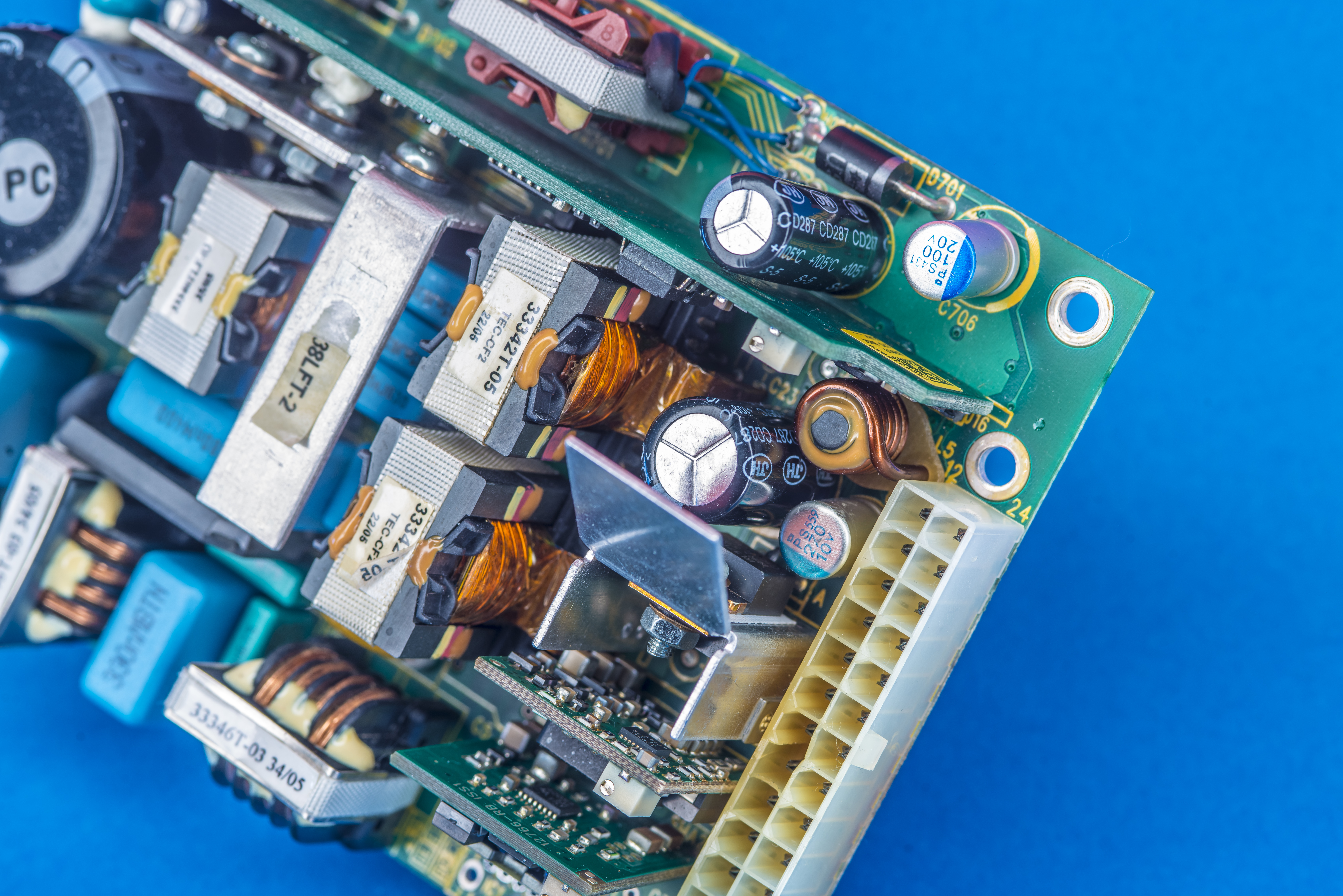

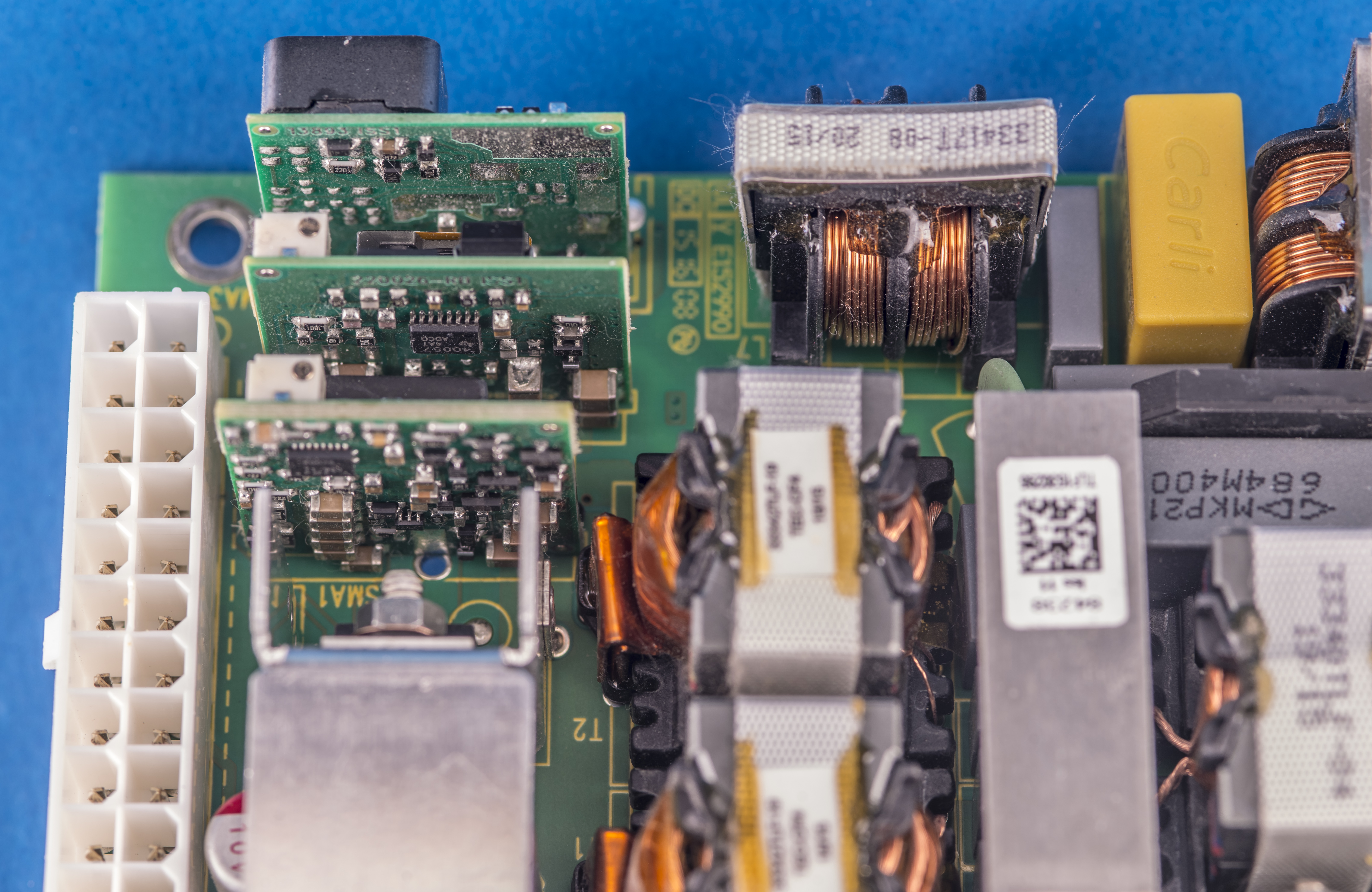

Sadly new TDK-Lambda built power supply also had crappy chinese low-cost capacitors and I had to replace them with something nice and properly reliable.

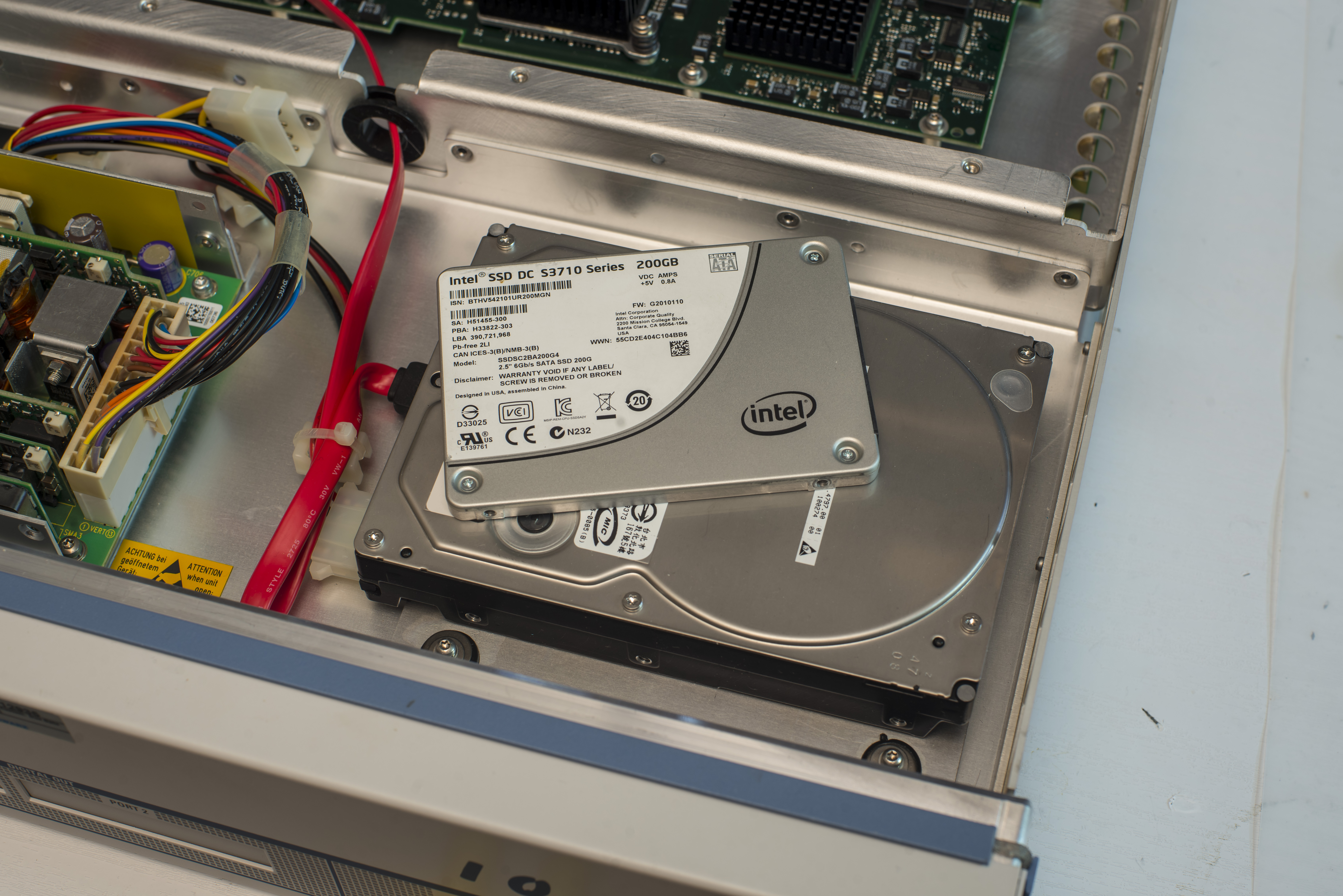

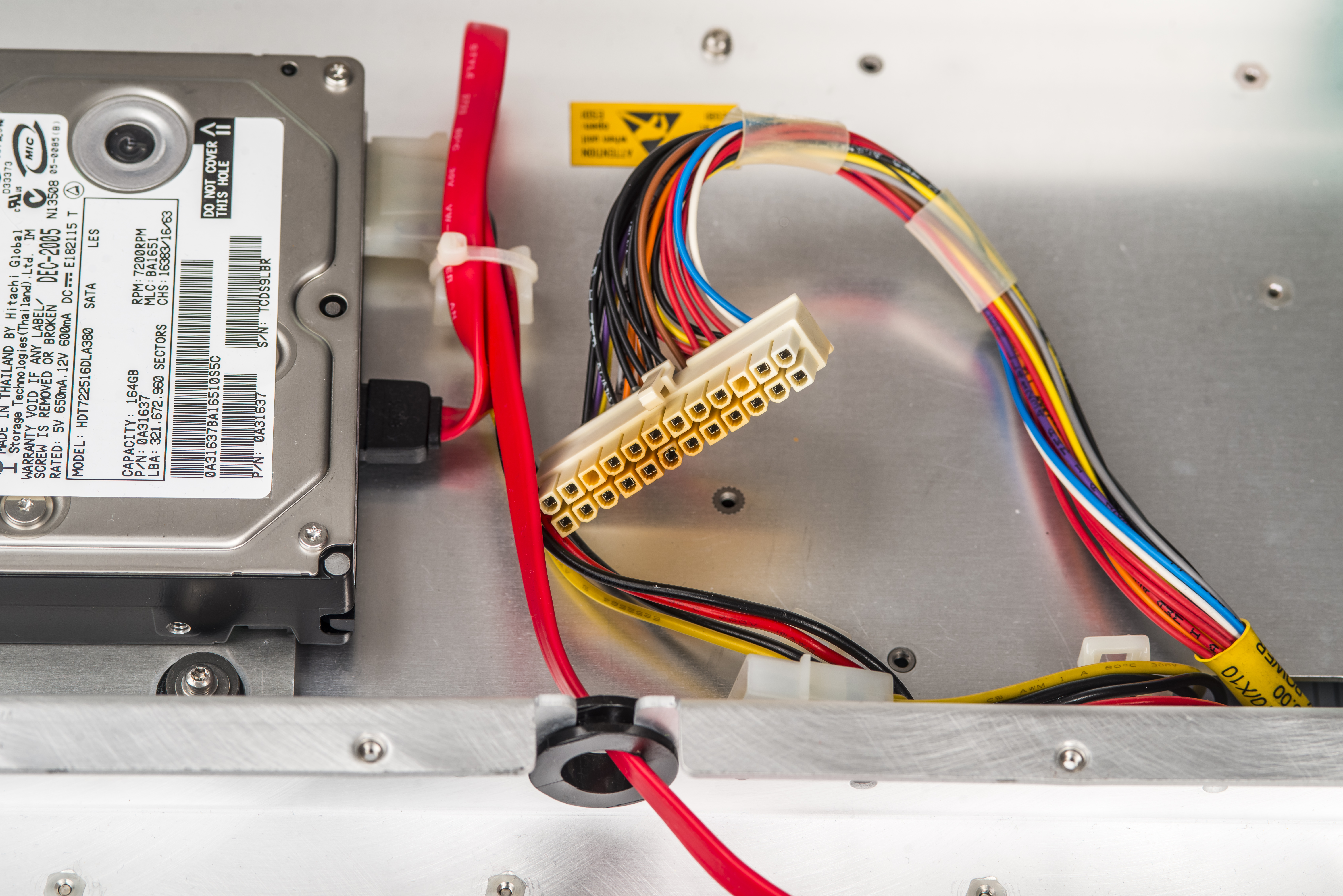

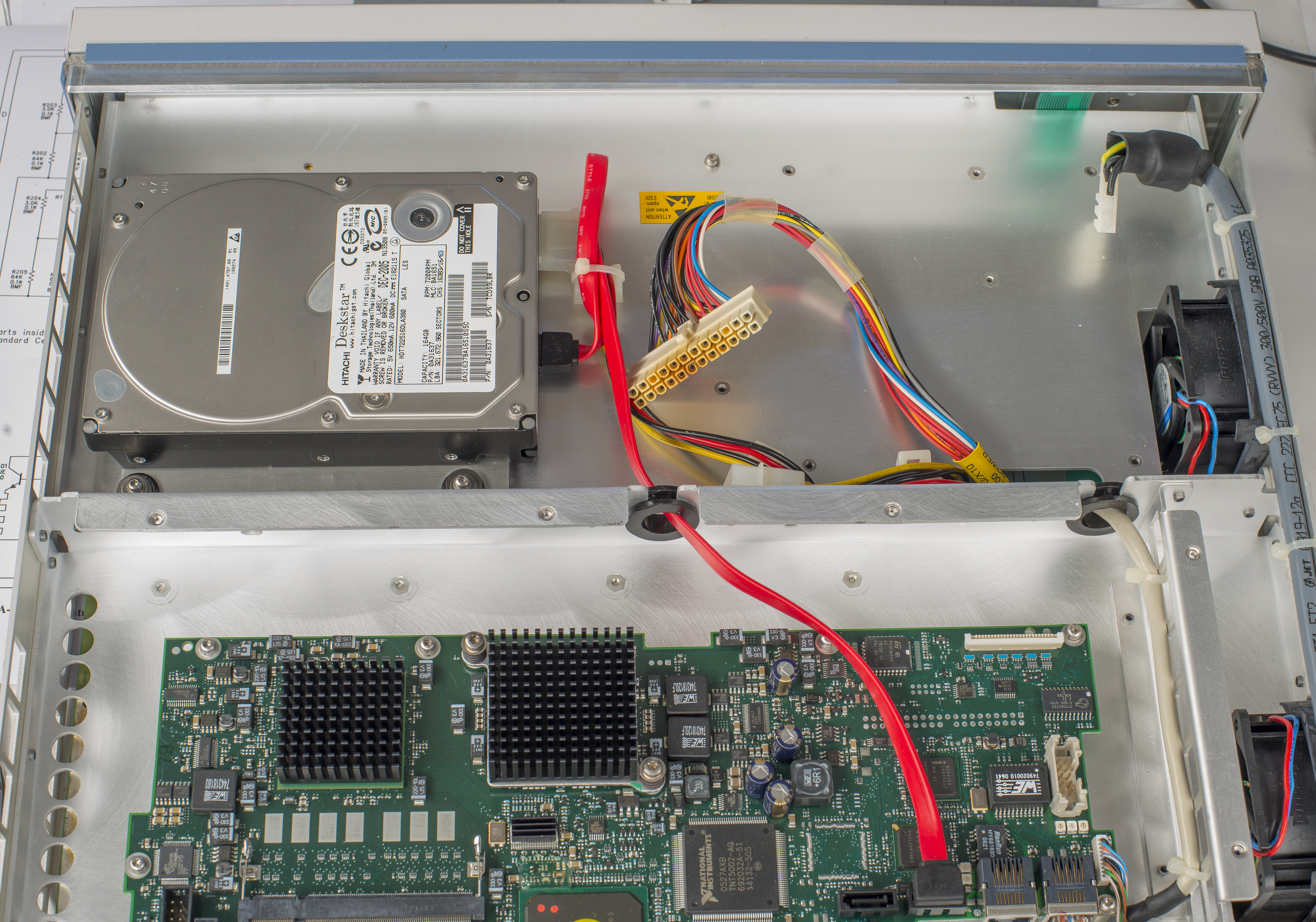

Hard-drive replacement
